Maksiwa

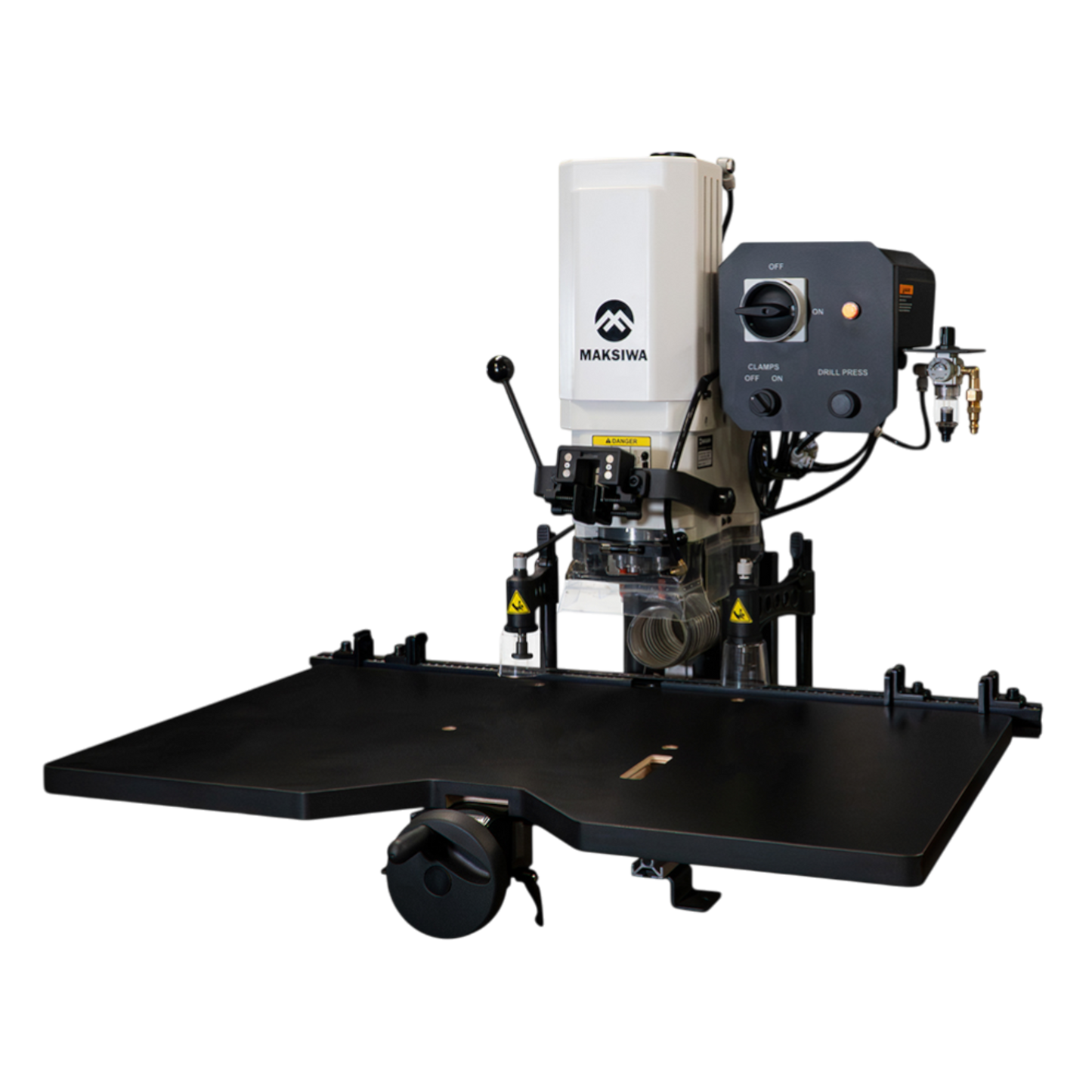

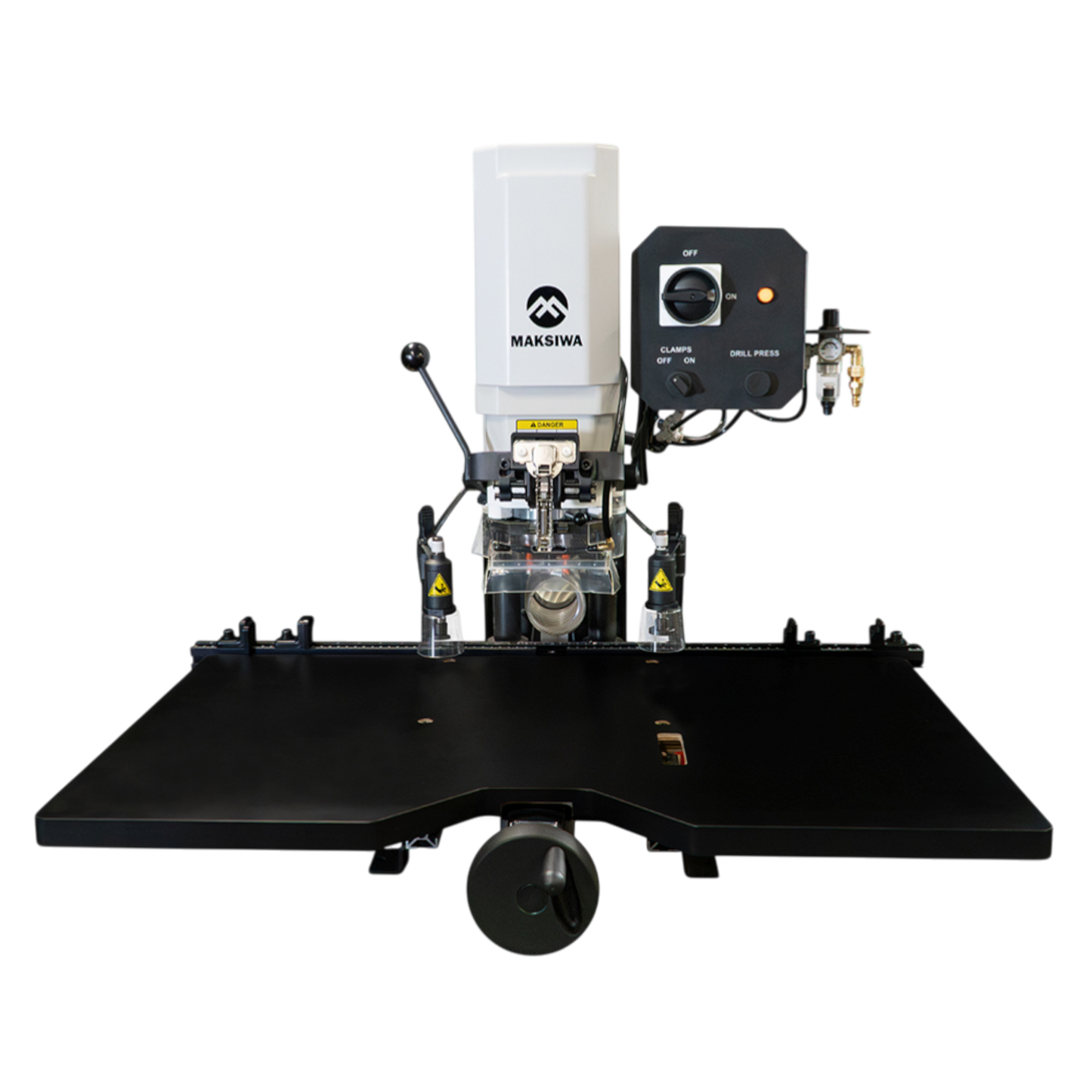

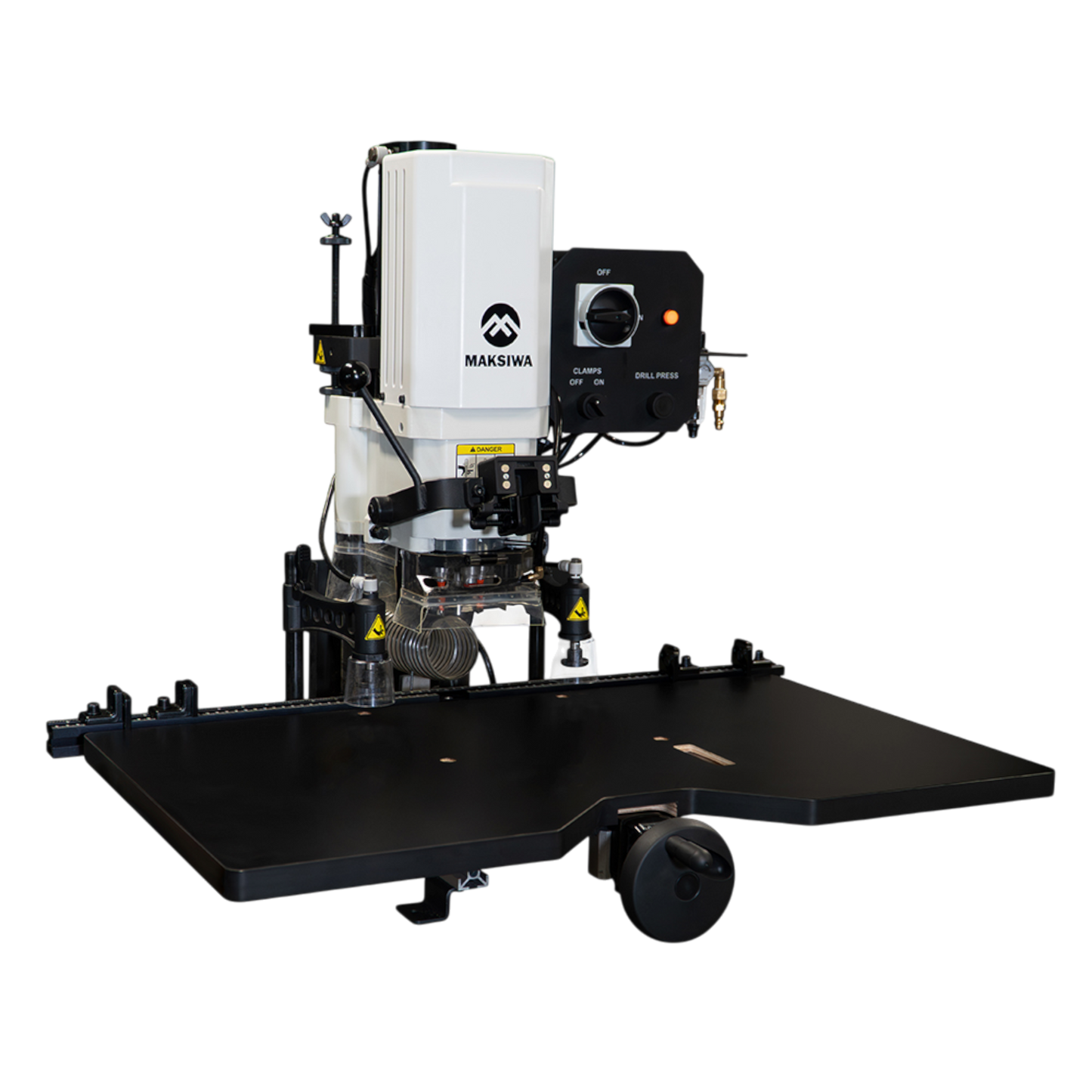

Maksiwa Hinge Boring Machine HBM1000
Maksiwa Hinge Boring Machine HBM1000
Regular price
$3,499.00 USD
Regular price
Sale price
$3,499.00 USD
Quantity
Couldn't load pickup availability
Precision hinge boring machine for cabinet and furniture production.
The Maksiwa HBM.1000 delivers fast, accurate hinge boring for cabinet doors. A must-have for any shop producing European-style frameless cabinetry.
- 110V – 1 Phase motor

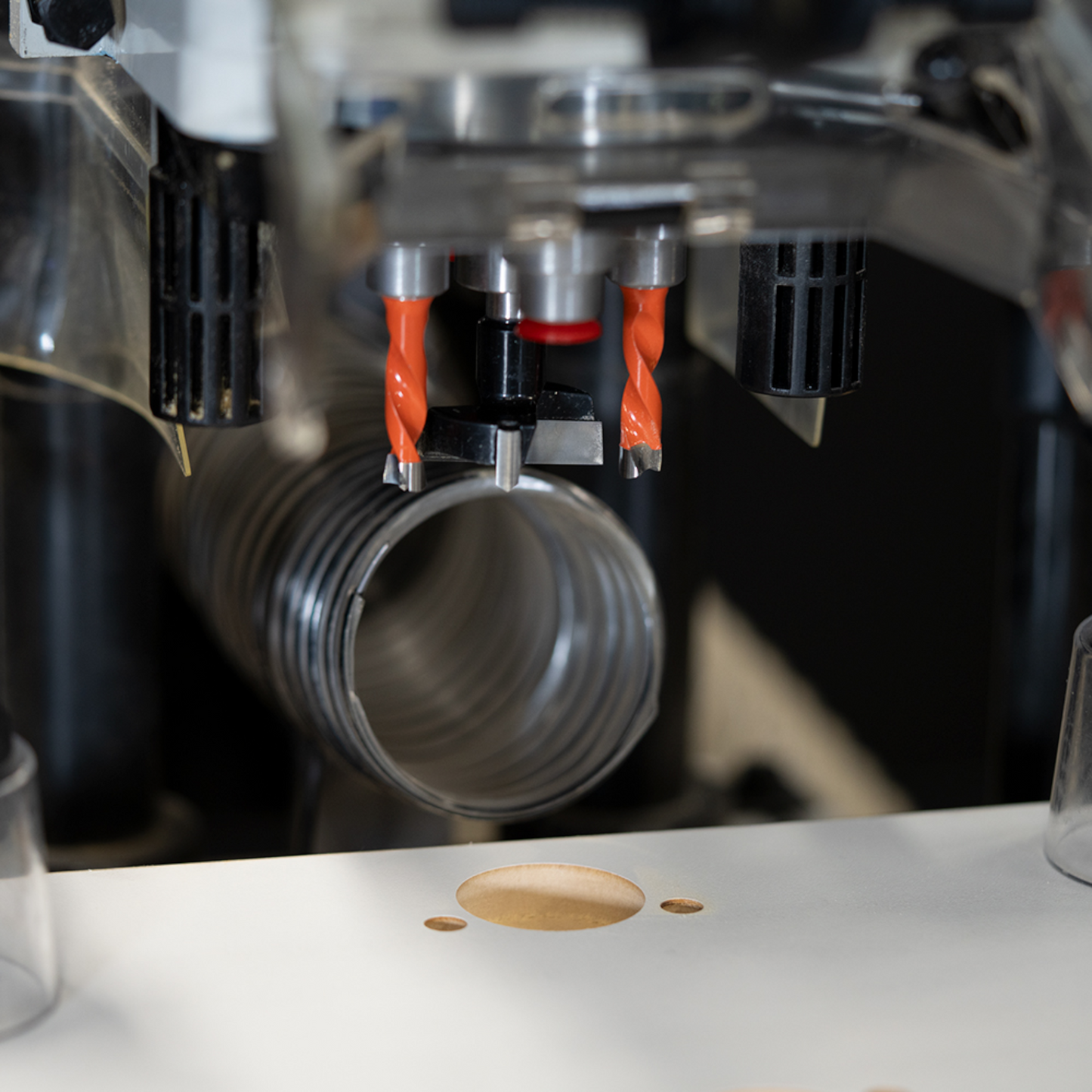

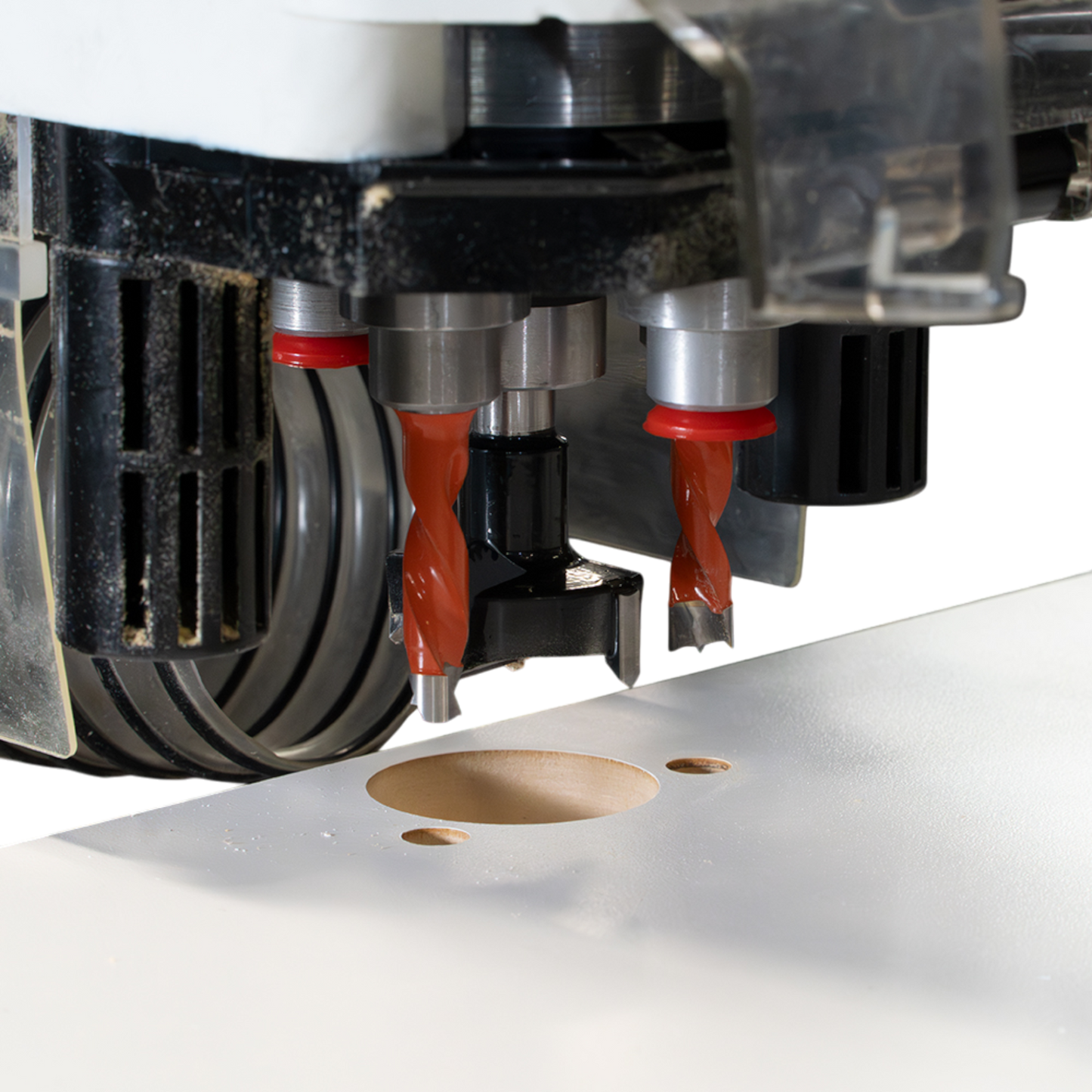

- Precision boring for European hinges
- Adjustable boring depth and position
- 2-year limited manufacturer warranty
Technical Information +
| Electrical Specs | 1 Phase 110V 13.6 Amp / 220V 6.8 Amp |
| Motor Specs | 1 HP / 1.1 KW 3400 RPM |
| Table Size | 18"" x 31 1/2"" |
| Machine Table Height | 5 3/8"" | 136 mm |
| Machine Table Depth | 2 3/4"" | 70 mm |
| Hinge Boring Bit Diameter | Carbide Tipped - 35 mm |
| Hinge Boring Bit Rotation | Right |
| Hinge Boring Shank | 10 mm |
| Hinge Boring Length | 57 mm |
| Drill Bits Diameter | Carbide Tipped - 8 mm |
| Drill Boring Bits Rotation | Left |
| Drill Boring Shank | 10 mm |
| Machine Dimensions (LxWxH) | 33 7/16"" x 28 3/8"" x 31 1/2"" |
| Number of Stops | 2 Left / 2 Right |
| Maximum Depth of Stroke | 4 5/16"" | 110 mm |
| Boring Distance Center Spindle | 0 - 2 3/4"" | 0 - 70 mm |
| Air Requirement | 90 PSI - 3 SCFM |
| Machine Weight | 110 lbs | 50 kg |
| Avg Noise Emissions | 78 dB |
