Maksiwa Automatic Edgebander CBCTPM Pre-milling

Name: Maksiwa Automatic Edgebander CBCTPM Pre-milling
Brand: Maksiwa
SKU: MKS-CBCTPM
Price: 21900.00 USD
Availability: InStock

$21,900.00 USD

Sale Sold out

Premium automatic edgebander with pre-milling for flawless edge finishing.

The Maksiwa CBC.TPM combines automatic edge banding with a pre-milling unit that squares and smooths panels before banding, ensuring a perfect, zero-gap finish every time.

220V – 1 Phase automatic operation
Integrated pre-milling unit
Zero-gap edge finishing capability
2-year limited manufacturer warranty

Technical Information +

Automatic Feeding Speed	21 ft/min \| 6.5 m/min

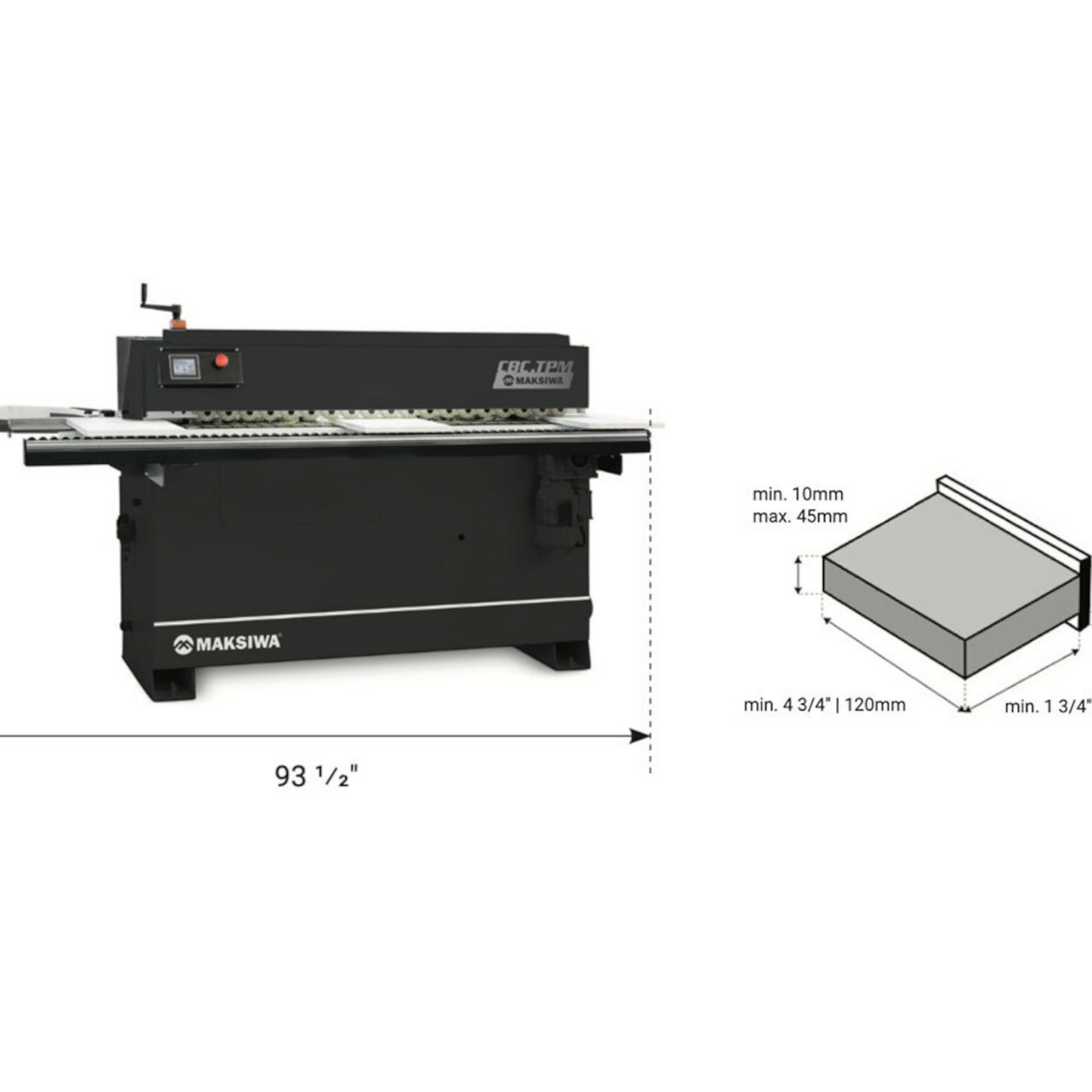

Panel Thickness Min/Max	13/32"" - 1 3/4"" \| 10 - 45 mm
Max Pre-milling Height	1"" \| 30 mm
Edgebanding Thickness	0.4 - 2 mm
Glue Pot Capacity	1 lbs \| 0.5 kg
Max Edgebanding Height	1"" \| 30 mm
Minimum Panel Width	1 3/4"" \| 45 mm
Minimum Panel Length	4 3/4"" \| 120 mm
Extendable Panel Support Rail Length	83 1/2"" \| 2122 mm
Extension Table Max Width	10"" \| 257 mm
Size of Dust Collector Ports	6"" \| 150 mm
Minimum Dust Collection Requirements	1236 CFM \| 2100 m3/h
Air Pressure Requirement	14 SCFM @ 90 PSI \| 0.7 MPa 380L/min
Edgebanding Coil Support Diameter	59"" \| 1498 mm
Recommend Glue Temperature Range	356°F - 410°F \| 180 - 210°C
Max Machine Dimensions (LxWxH)	93 1/2"" x 40 13/16"" x 53"" \| 2376 x 1028 x 1347 mm
Net Weight	1191 lbs \| 540 kg
Shipping Dimensions (LxWxH)	91"" x 30"" x 57"" \| 2320 x 760 x 1448 mm
Glue Type	Pellet (EVA)
Electrical Information	1 Phase 220V 30 Amps 60 Hz
Sound Rating	80 dB
