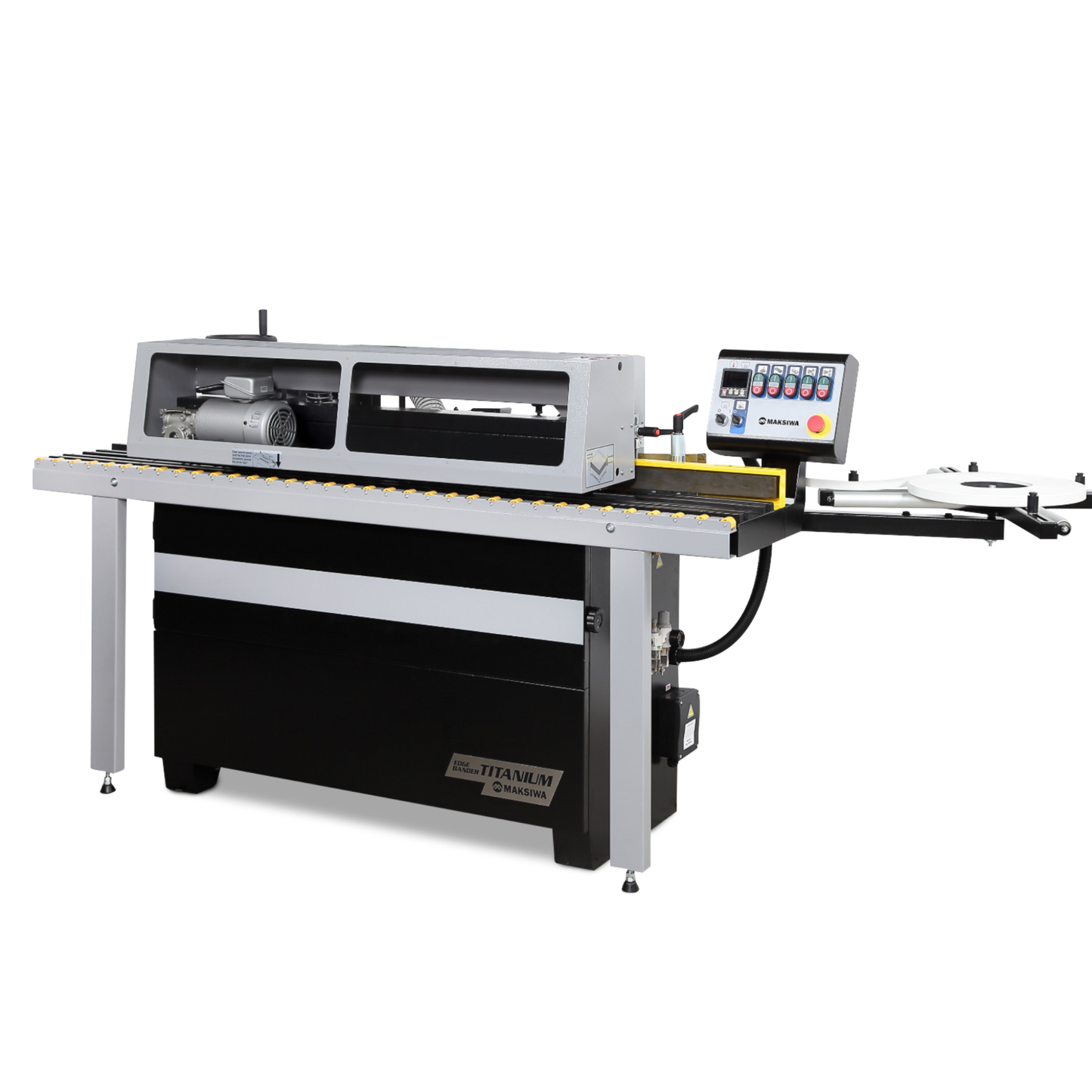

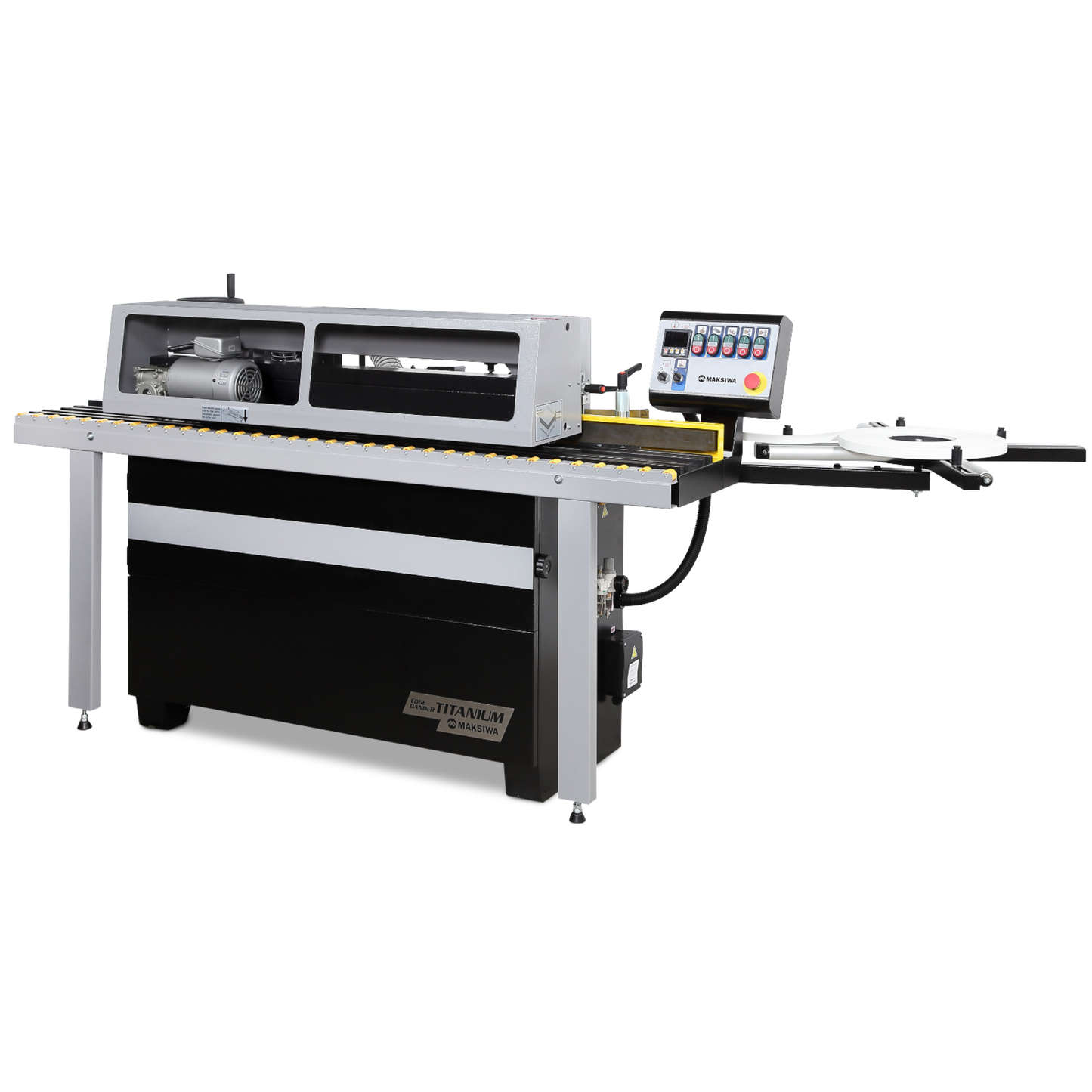

Maksiwa Automatic Edgebander CBCT Titanium

Name: Maksiwa Automatic Edgebander CBCT Titanium
Brand: Maksiwa
SKU: MKS-CBCT
Price: 13200.00 USD
Availability: InStock

$13,200.00 USD

Sale Sold out

Fully automatic Titanium edgebander for high-production shops.

The Maksiwa CBC.T Titanium is an automatic edgebander that delivers precision and speed for professional cabinet and furniture manufacturers requiring consistent, high-quality edge banding at scale.

220V – 1 Phase automatic operation
Titanium series — premium performance
High-speed production capability
2-year limited manufacturer warranty

Technical Information +

Automatic Feeding Speed	16 ft/min - 5 m/min
Panel Thickness Min/Max	31/64"" - 1 3/4"" \| 12 - 45 mm
Edgebanding Thickness	0.0157"" - 0.118"" \| 0.4 - 3 mm
Glue Pot Capacity	2 lbs \| 1 kg
Max Edgebanding Height	2"" \| 50 mm
Minimum Panel Width	4 3/4"" \| 120 mm
Minimum Panel Length	9 7/16"" \| 240 mm
Extendable Panel Support Rail Length	78 21/32"" \| 1998 mm
Extension Table Max Width	12"" \| 310 mm
Size of Dust Collector Ports	4"" \| 100 mm
Minimum Dust Collection Requirements	700 CFM \| 20m/min
Air Pressure Requirement	6.8 SCFM @ 90 PSI
Edgebanding Coil Support Diameter	31 1/2"" \| 820 mm
Recommend Glue Temperature Range	356°F - 410°F \| 180°C - 210°C
Max Machine Dimensions (LxWxH)	112"" x 63"" x 51"" \| 2844 x 1600 x 1295 mm
Net Weight	849 lbs \| 385 kg
Shipping Dimensions (LxWxH)	86"" x 36"" x 57"" \| 2184 x 914 x 1448 mm
Glue Type	Granulated Hot-Melt (EVA)
Electrical Information	1 Phase 220V 30 Amps 60 Hz
Sound Rating	80 dB
