Top-of-the-line automatic edgebander with corner rounding — includes on-site installation.

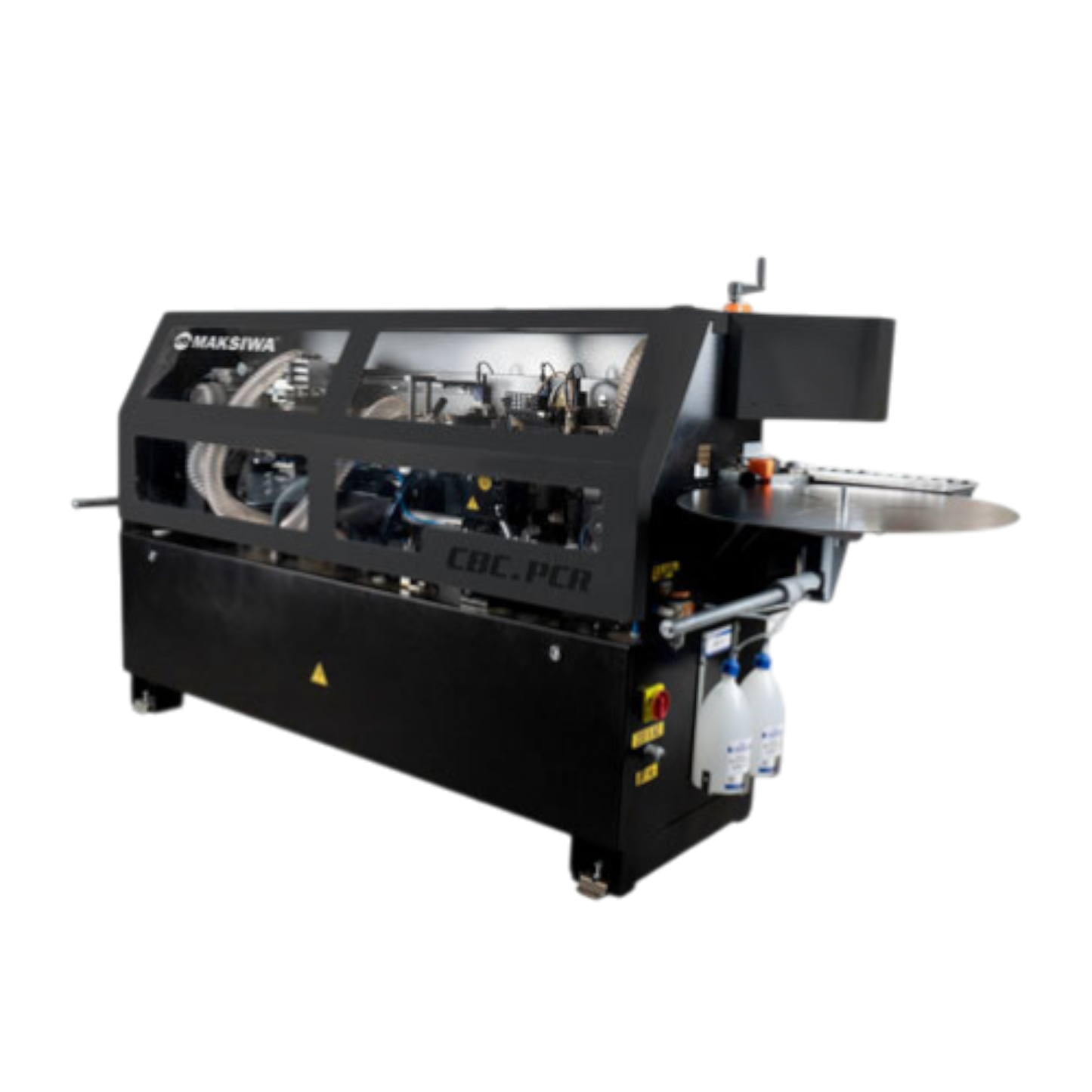

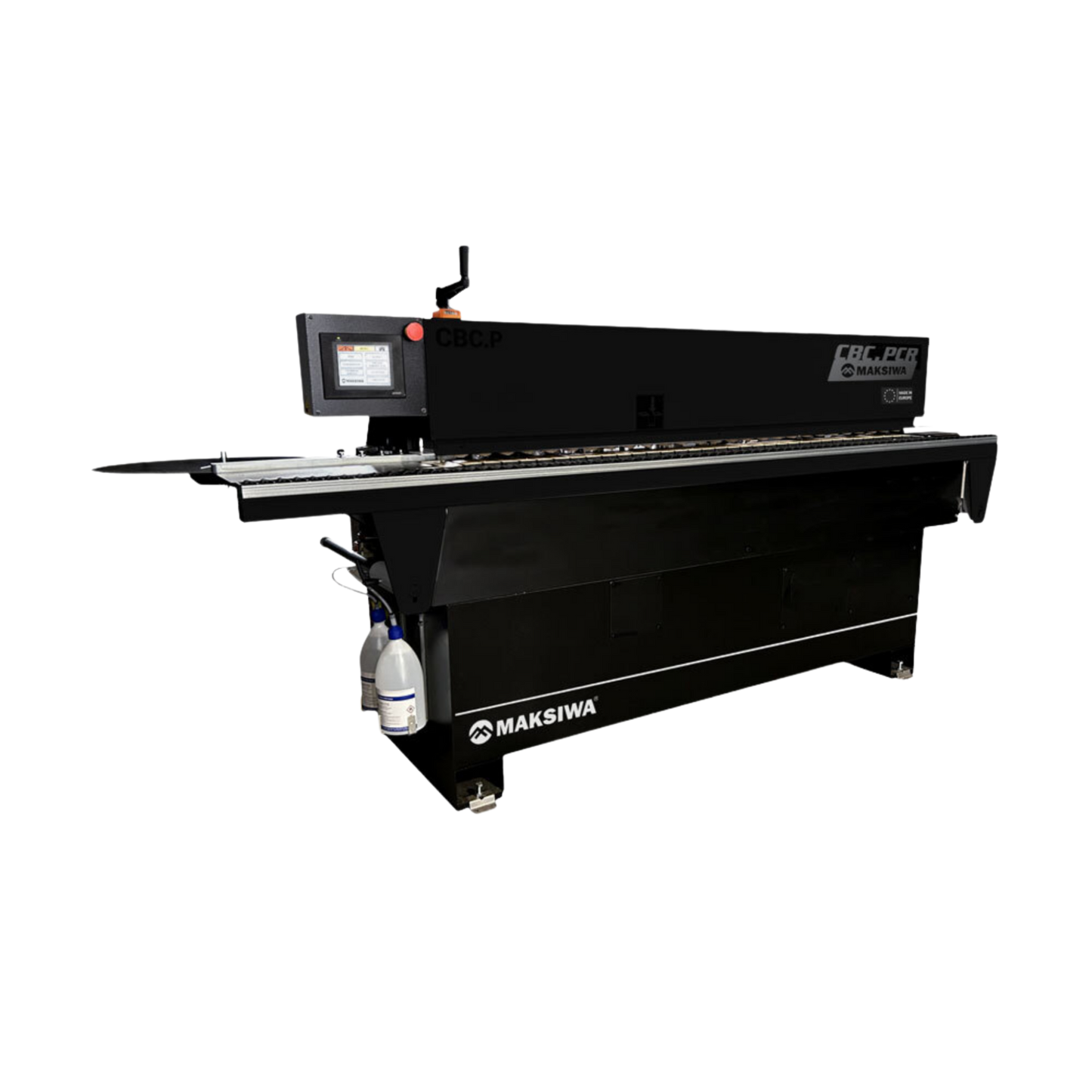

The Maksiwa CBC.PCR Platinum is the ultimate edgebanding solution, featuring automatic corner rounding for furniture-grade finishes. On-site installation is included with every purchase.

220V – 1 Phase automatic operation

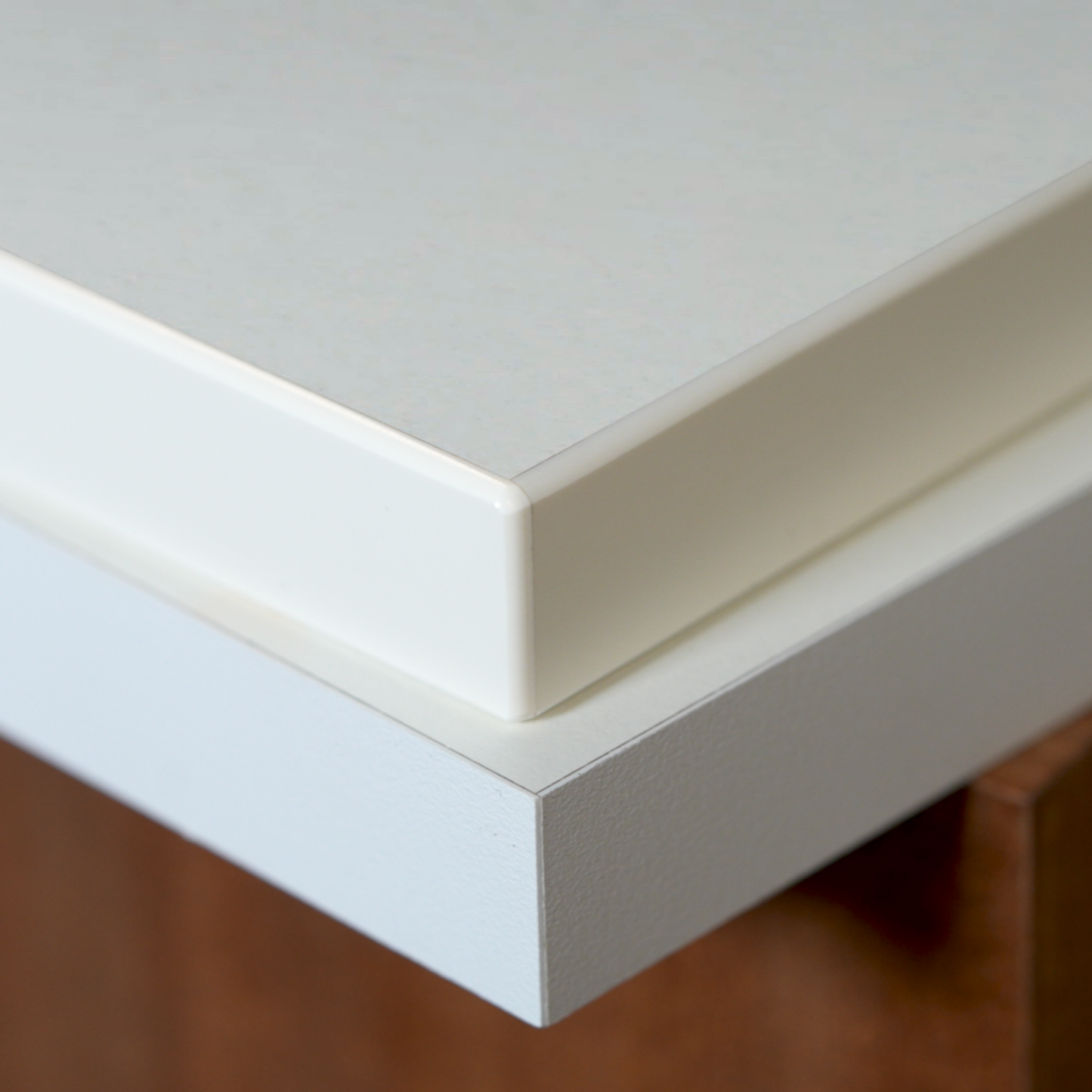

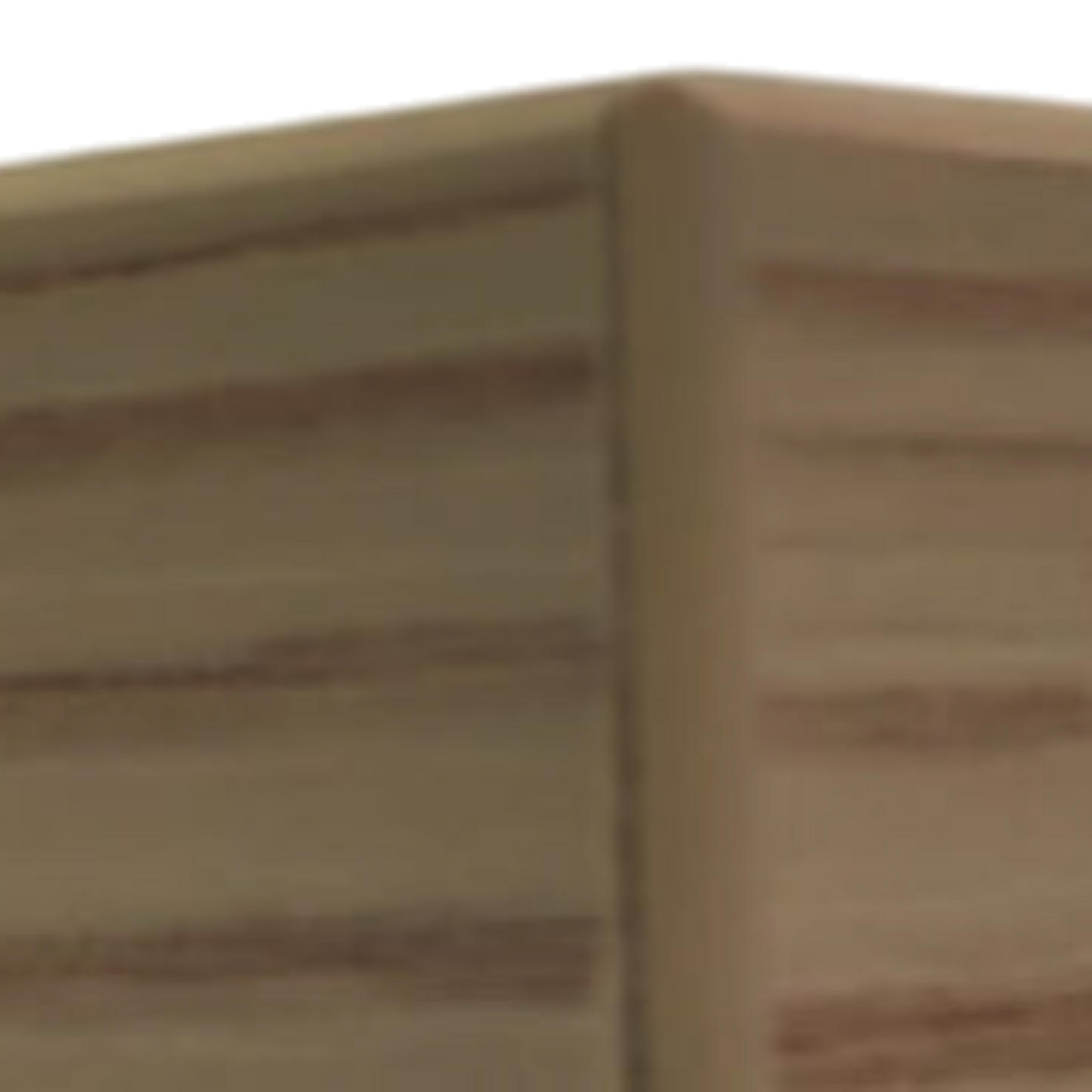

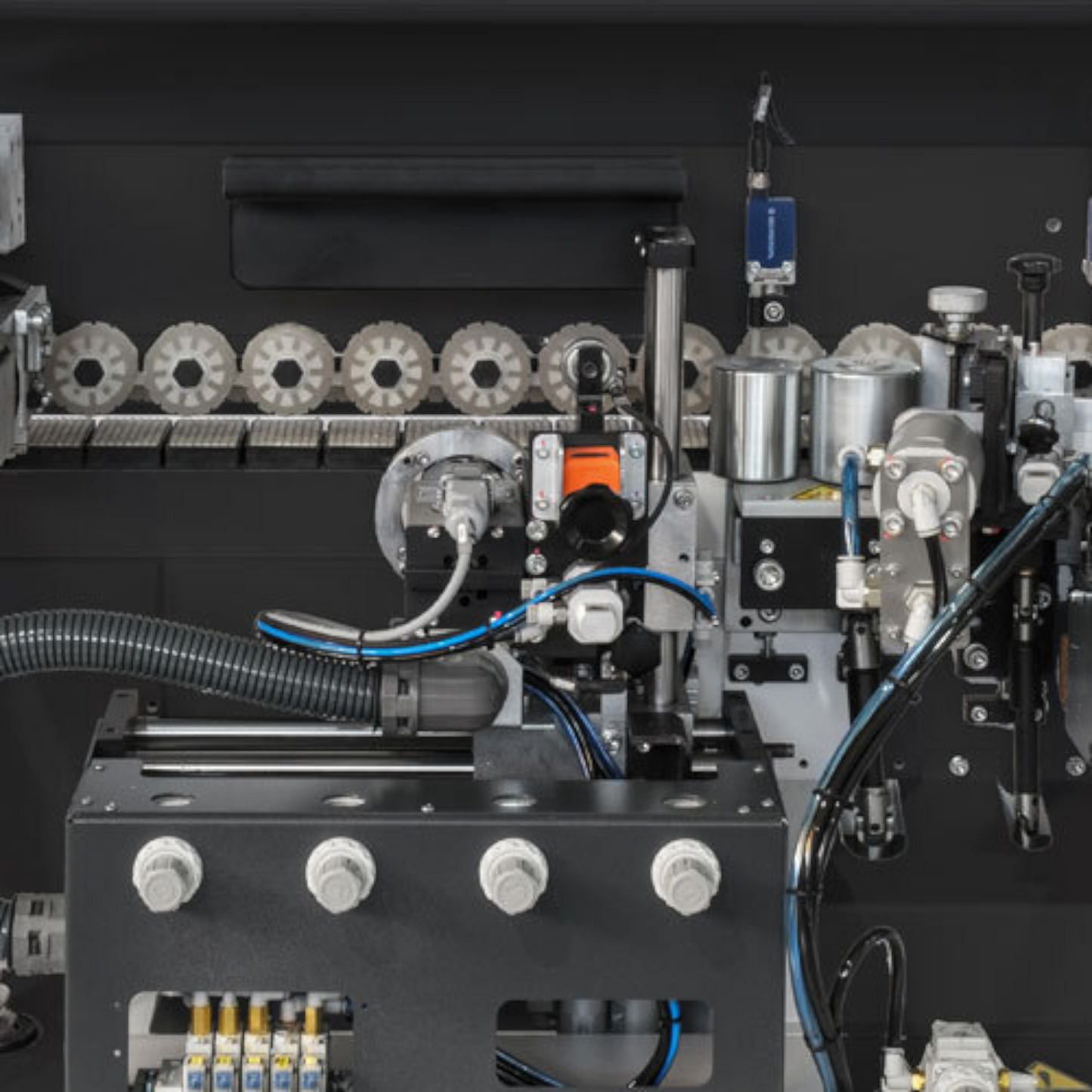

Automatic corner rounding unit
On-site installation included
2-year limited manufacturer warranty

Technical Information +

Automatic Feeding Speed	18 ft/min \| 5.5 m/min
Panel Thickness Min/Max	21/64"" - 1 31/32"" \| 8 - 50 mm
Max Pre-milling Height	1"" \| 30 mm
Edgebanding Thickness	0.4 - 3 mm
Glue Pot Capacity	3.3 lbs \| 1.5 kg
Max Edgebanding Height	2"" \| 51 mm
Minimum Panel Width	3"" \| 75 mm
Minimum Panel Length	7 7/8"" \| 200 mm
Extendable Panel Support Rail Length	103"" \| 2627 mm
Extension Table Max Width	54"" \| 1371 mm
Size of Dust Collector Ports	6"" \| 150 mm
Minimum Dust Collection Requirements	1236 CFM \| 2100 m3/h
Air Pressure Requirement	14 SCFM @ 90 PSI \| 0.7 MPa 380L/min
Edgebanding Coil Support Diameter	59"" \| 1498 mm
Recommend Glue Temperature Range	356°F - 410°F \| 180 - 210°C

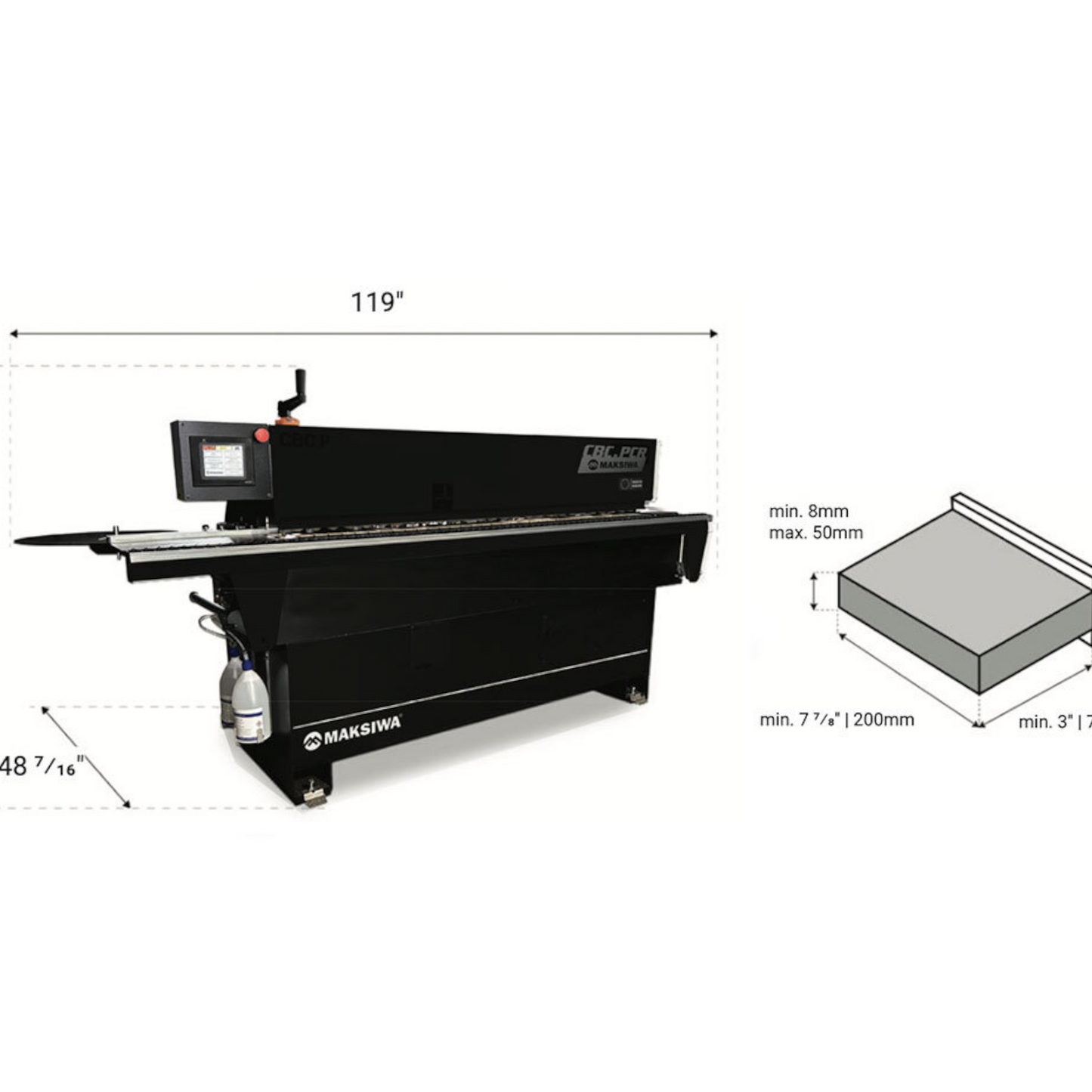

Max Machine Dimensions (LxWxH)	119"" x 40 13/16"" x 48 7/16"" \| 3026 x 1036 x 1230 mm
Net Weight	1411 lbs \| 640 kg
Shipping Dimensions (LxWxH)	111"" x 30"" x 57"" \| 2820 x 760 x 1448 mm
Glue Type	Pellet (EVA & PUR)
Electrical Information	1 Phase 220V 30 Amps 60 Hz
Sound Rating	80 dB
