Maksiwa
Regular price
$10,999.00 USD
Regular price
Sale price
$10,999.00 USD
Sale
Sold out
Couldn't load pickup availability
Refresh

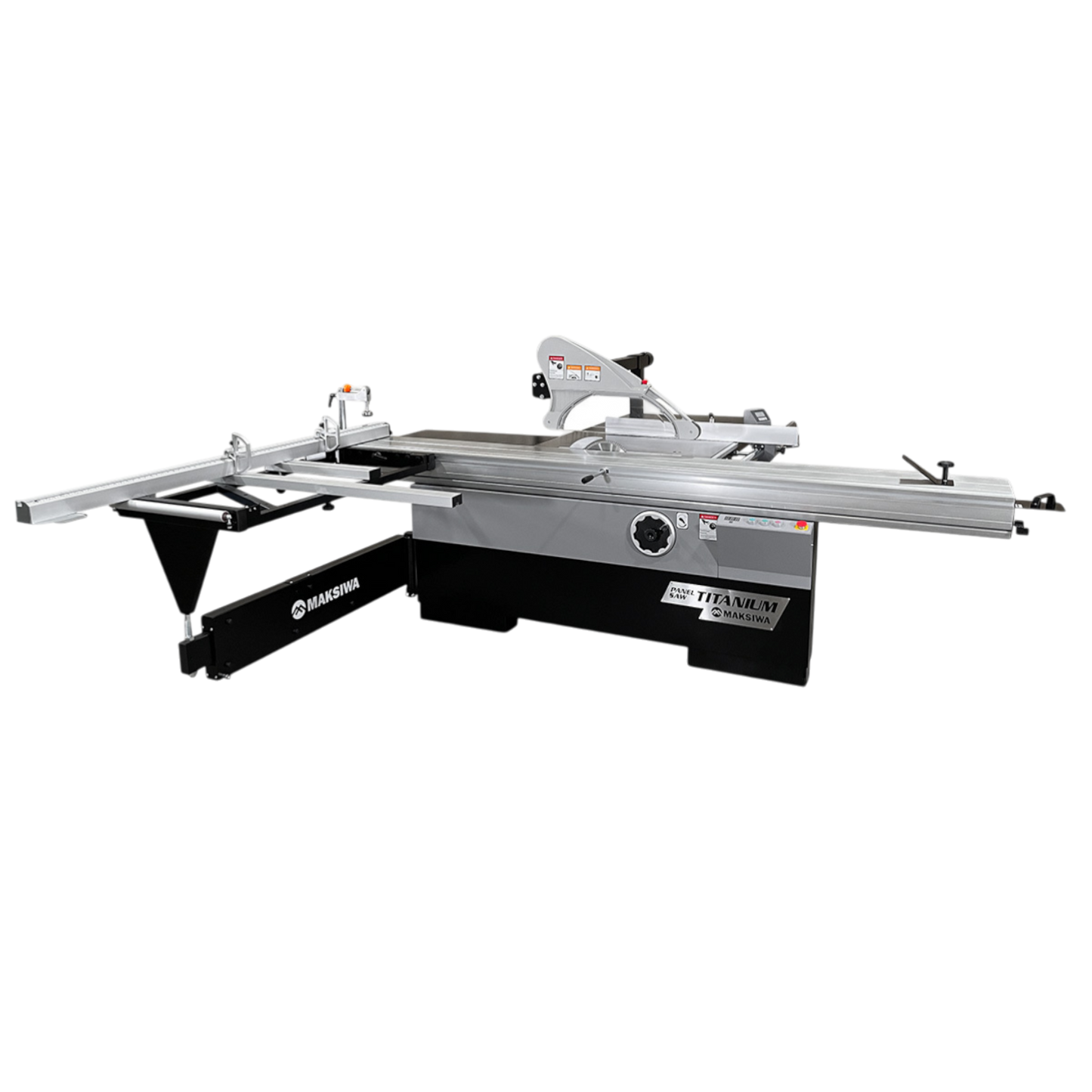

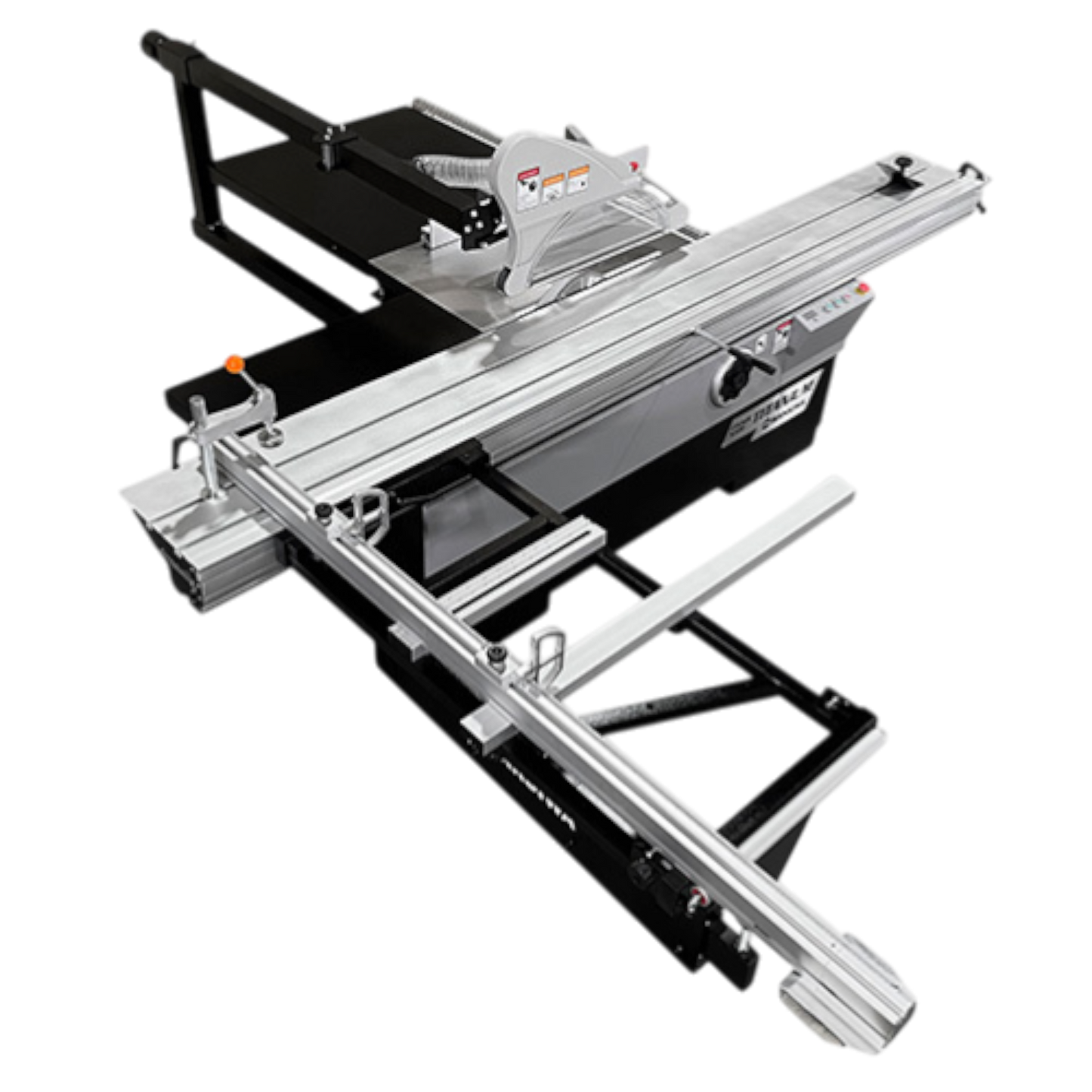

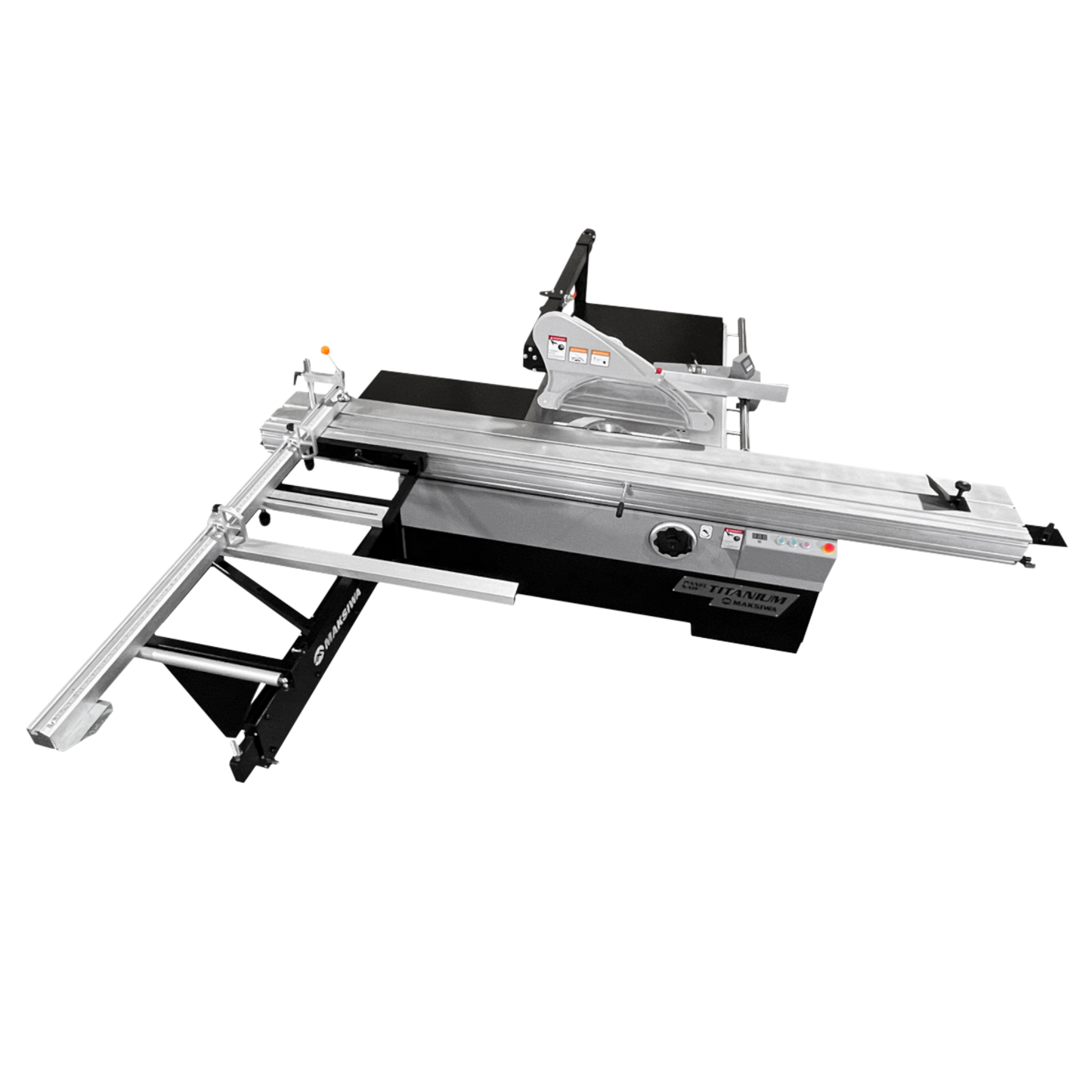

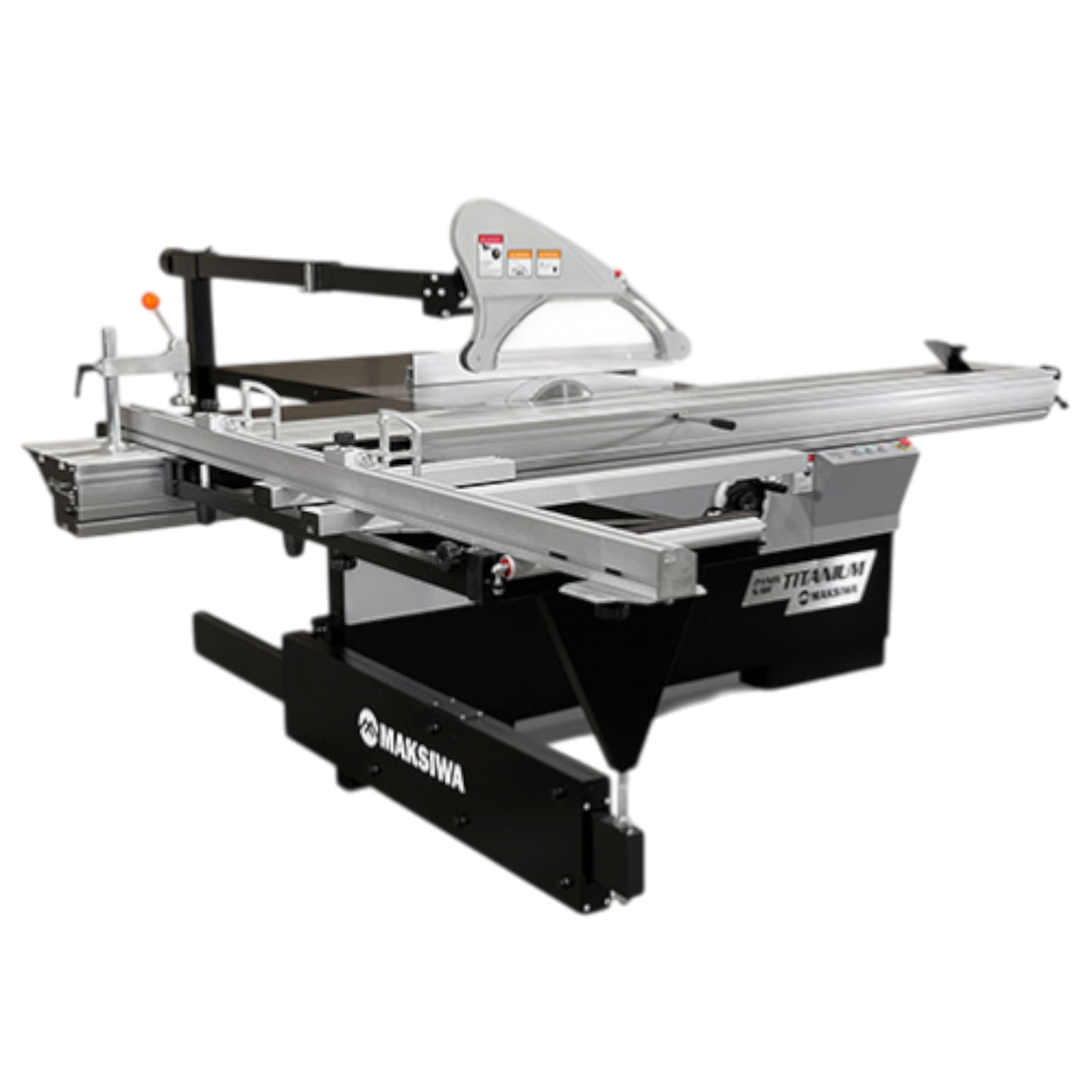

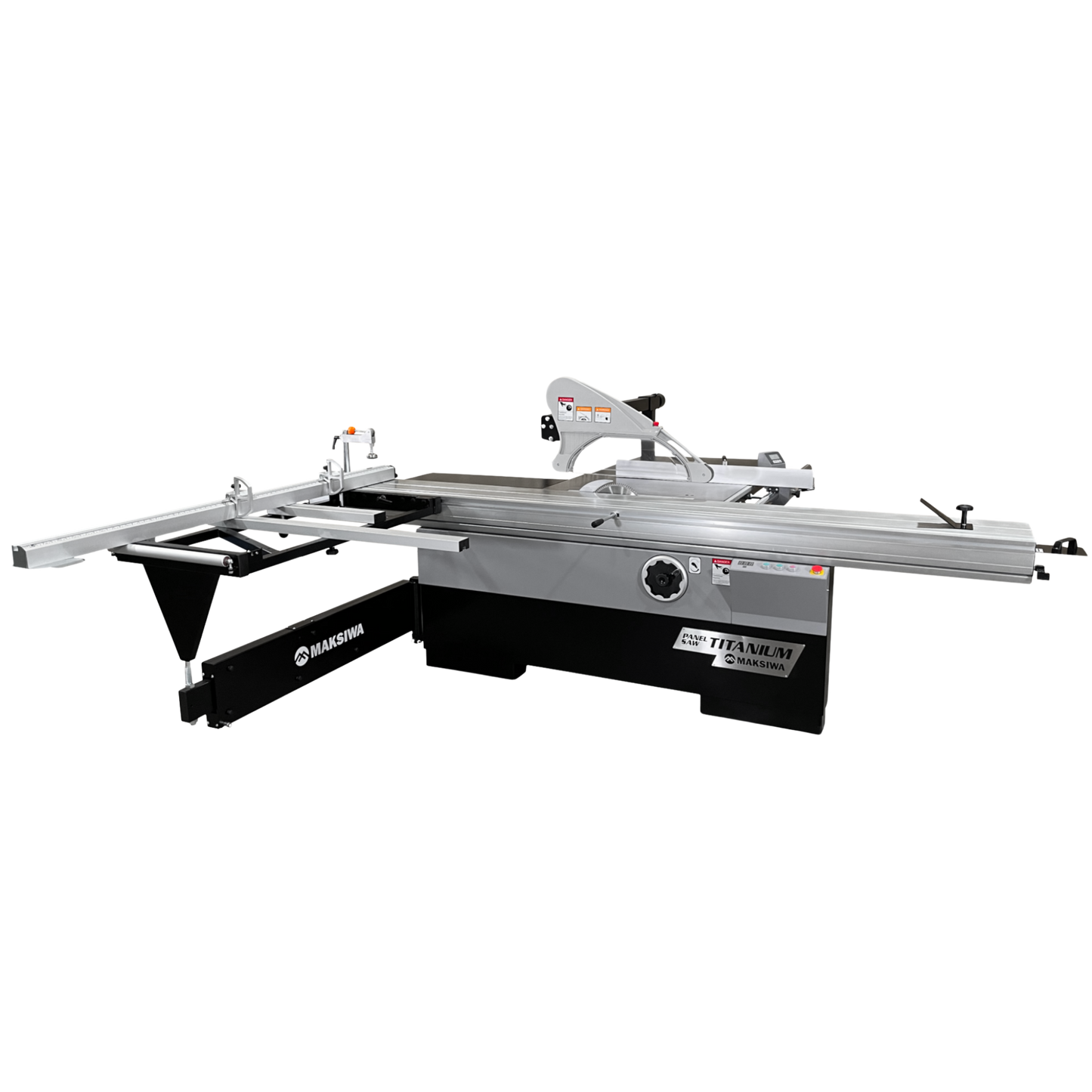

Titanium series 3200mm sliding panel saw — premium performance for demanding shops.
The Maksiwa BMT.3200.IR Titanium delivers enhanced precision, smoother operation, and superior build quality over the standard series, built for shops that demand the best.

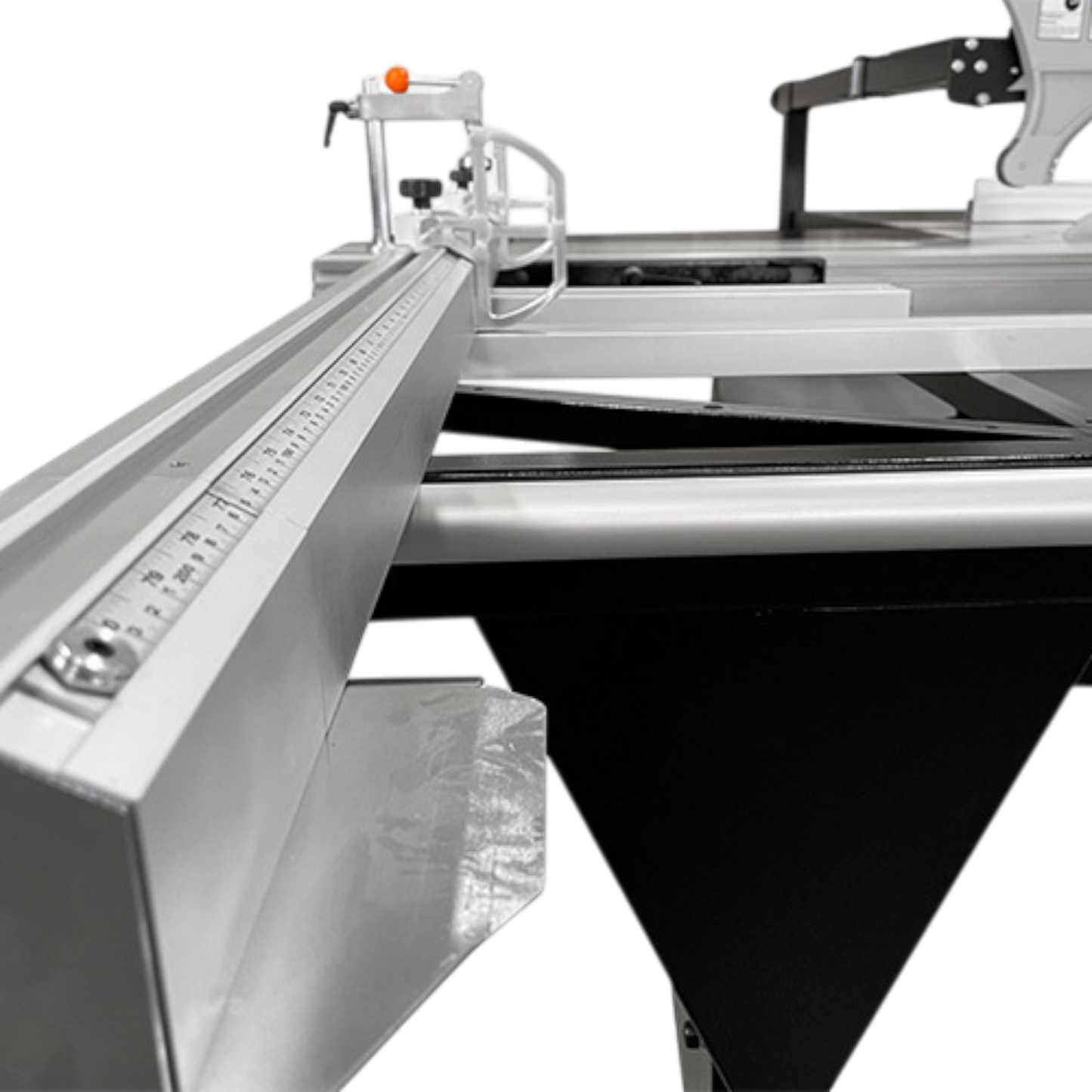

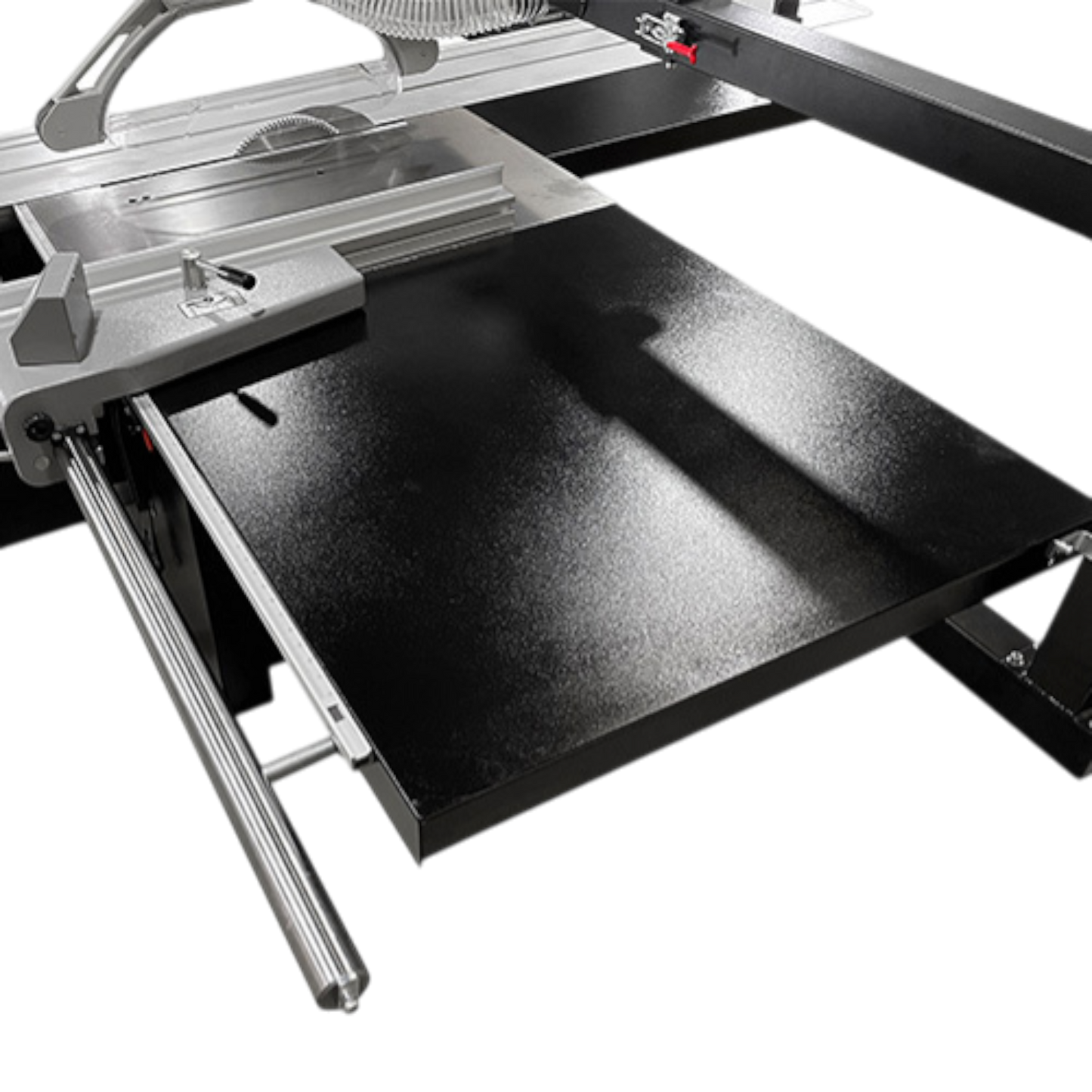

3200mm sliding table
5HP – 1 Phase 220V motor
Titanium series premium components
2-year limited manufacturer warranty
Technical Information +
Main Motor
5 HP / 4000 RPM 3.7 kw
Max Blade Diameter
12"" - 305 mm
Main Blade Arbor
1 3/6"" - 30 mm
Main Blade Max Cutting Height at 90°
3 1/2"" - 90 mm
Main Blade Cutting Height at 45°
2 7/16"" - 63 mm
Scoring Motor
3/4 HP / 8000 RPM 0.55 kw
Scoring Motor Blade
4 3/4"" - 120 mm
Scoring Blade Arbor
3/4"" - 20 mm
Scoring Blade Type
Conical
Max Ripping Capacity
51"" - 1300 mm
Crosscut Capacity
126"" - 3200 mm

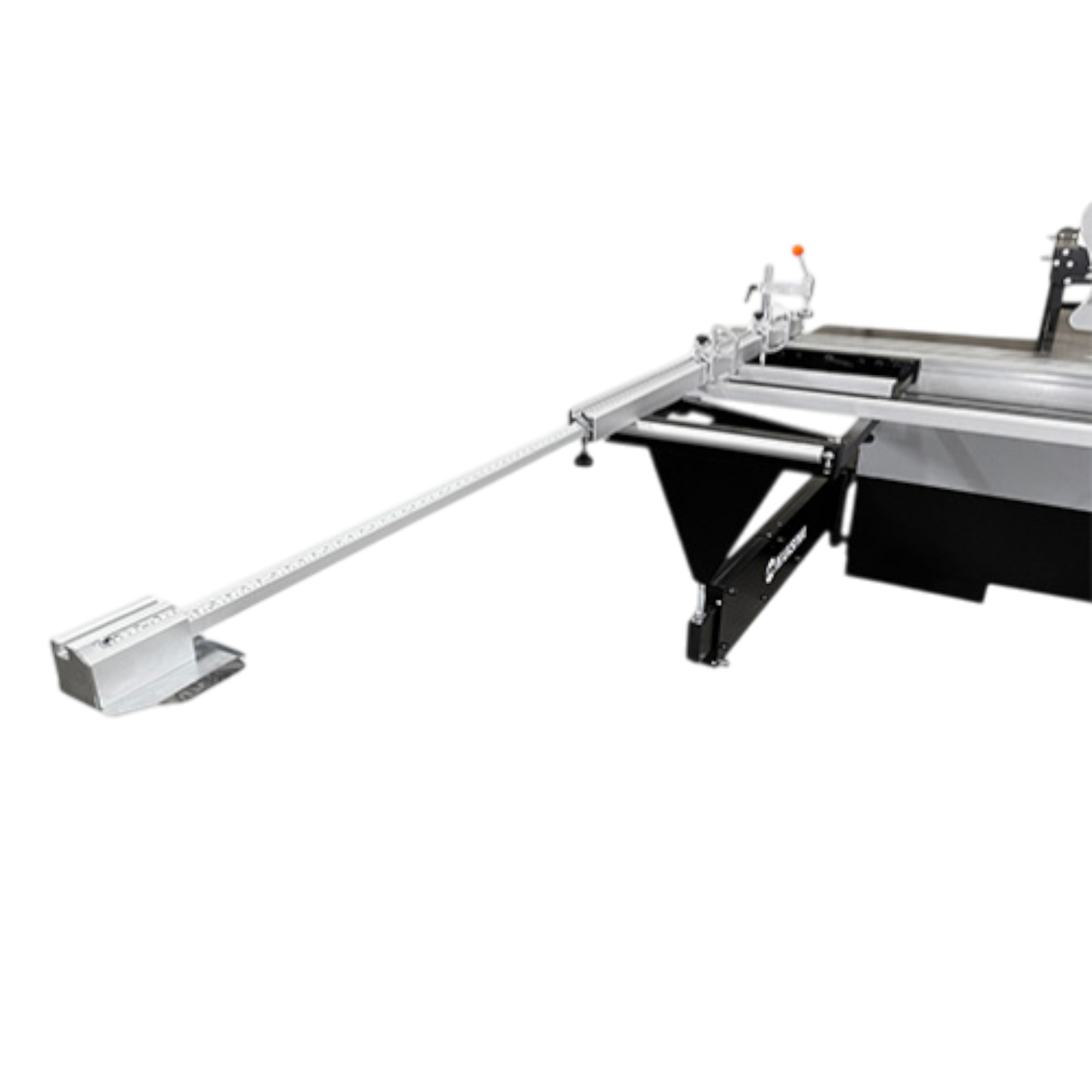

Crosscut Fence Capacity Closed/Open
78""/120"" - 1981/3048 mm
Machine Working Dimensions (LxWxH)
132"" x 137"" x 65"" - 3352 x 3479 x 1651 mm
Cast Iron Table Dimension (LxWxH)
35"" x 21"" x 34"" - 896 x 548 x 864 mm
Sliding Table Dimension (LxW)
126"" x 14"" - 3200 x 358 mm

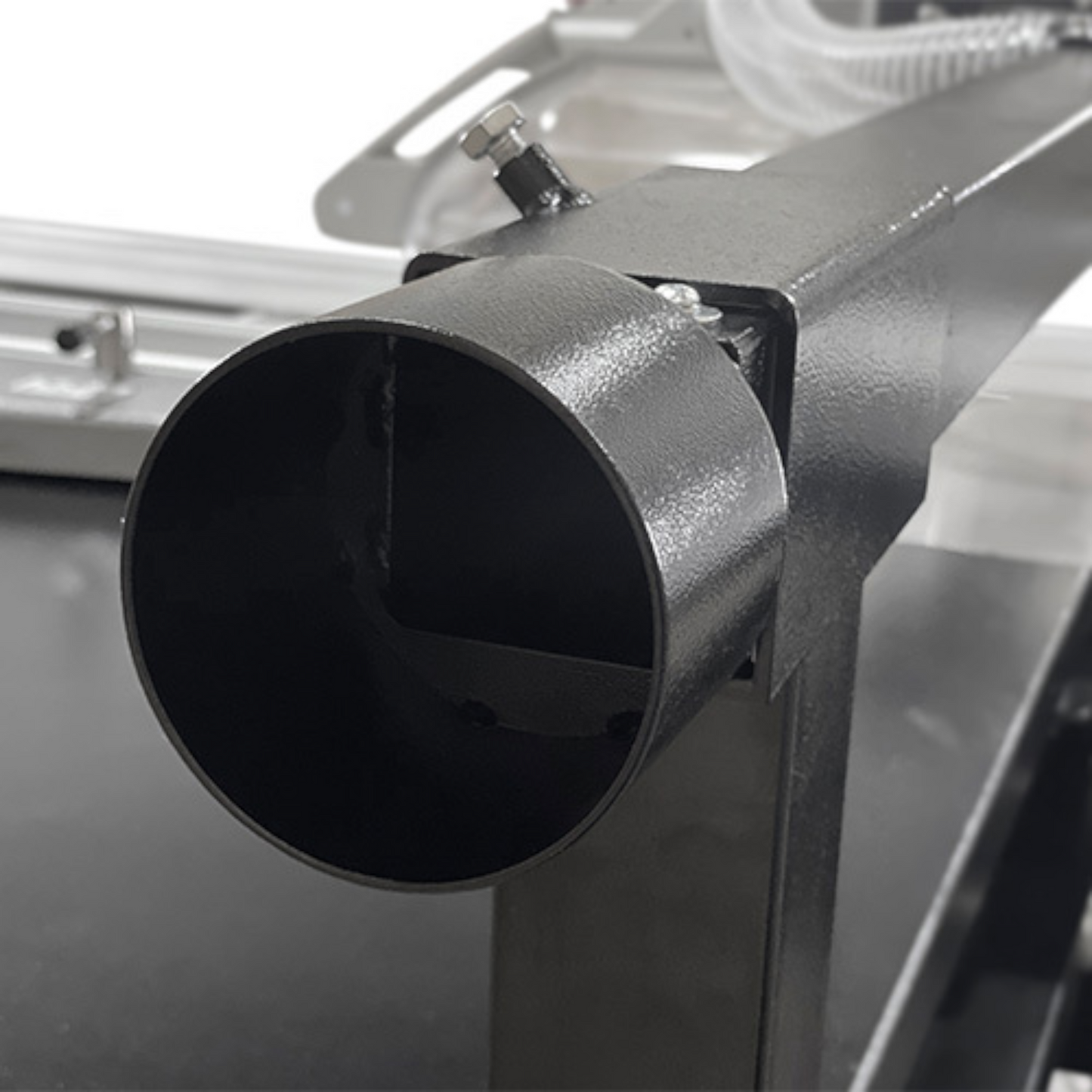

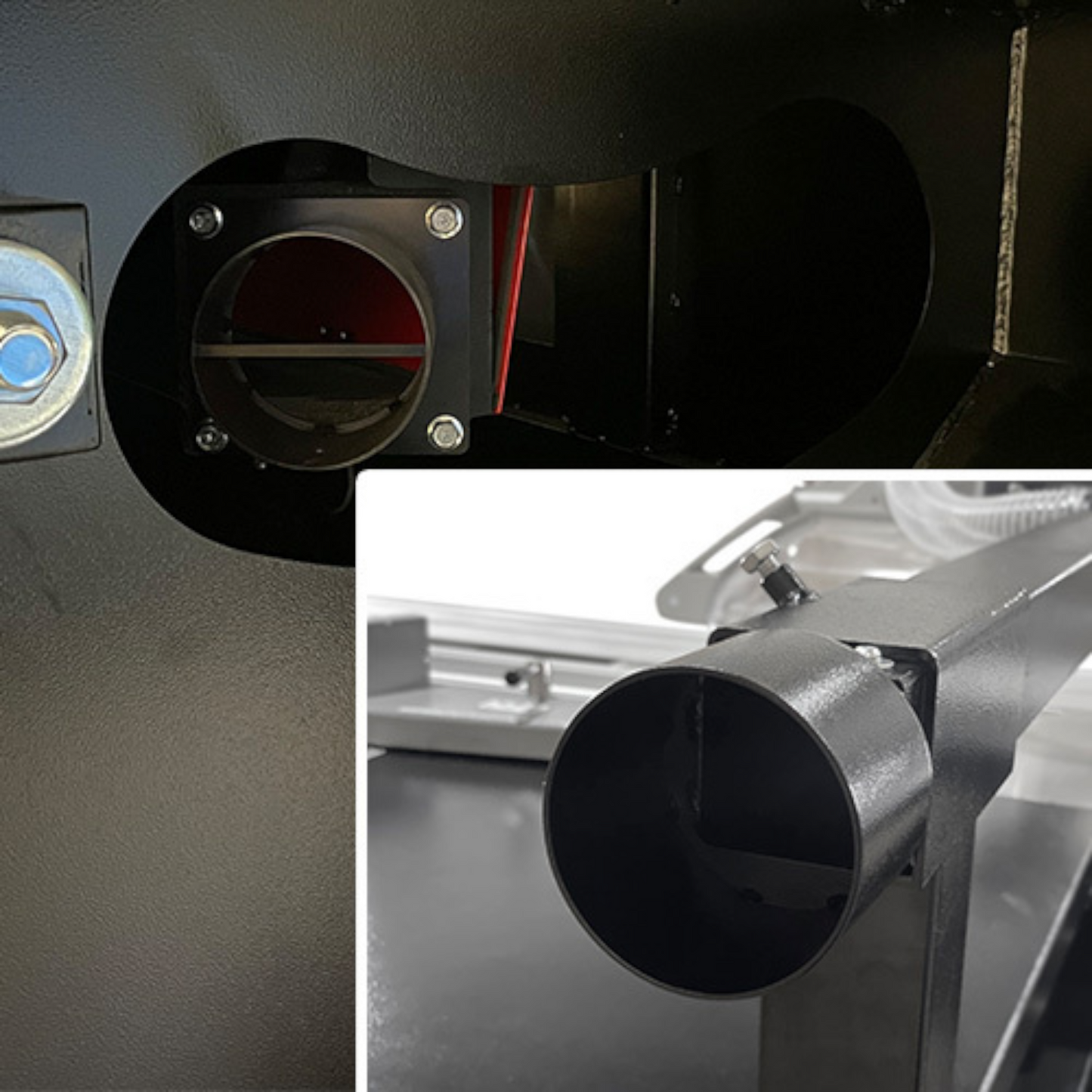

Dust Collection Port (2)
4"" / 100 mm
Minimum Dust Collection Requirements
1000 CFM - 28m/min
Electrical Specs
1 Phase 220V 30 Amps 60 Hz
Cast Iron Crate Dimensions (LxWxH)
83"" x 45"" x 45"" - 2108 x 1143 x 1143 mm
Cast Iron Crate Weight
1254 lbs - 569 kgs
Sliding Table Crate Dimensions (LxWxH)
133"" x 18"" x 15"" - 3378 x 457 x 381 mm
Sliding Table Crate Weight
274 lbs - 124 kgs
