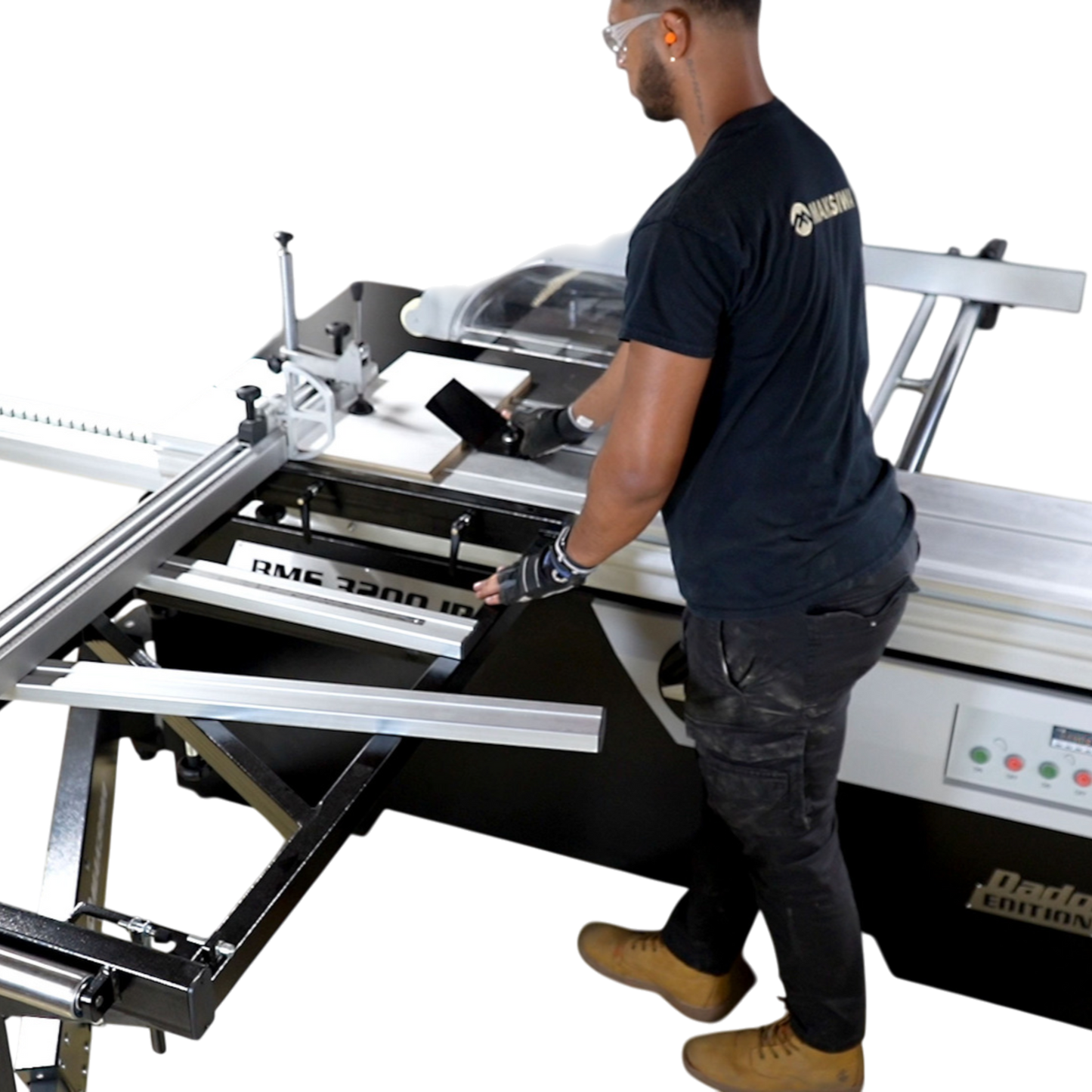

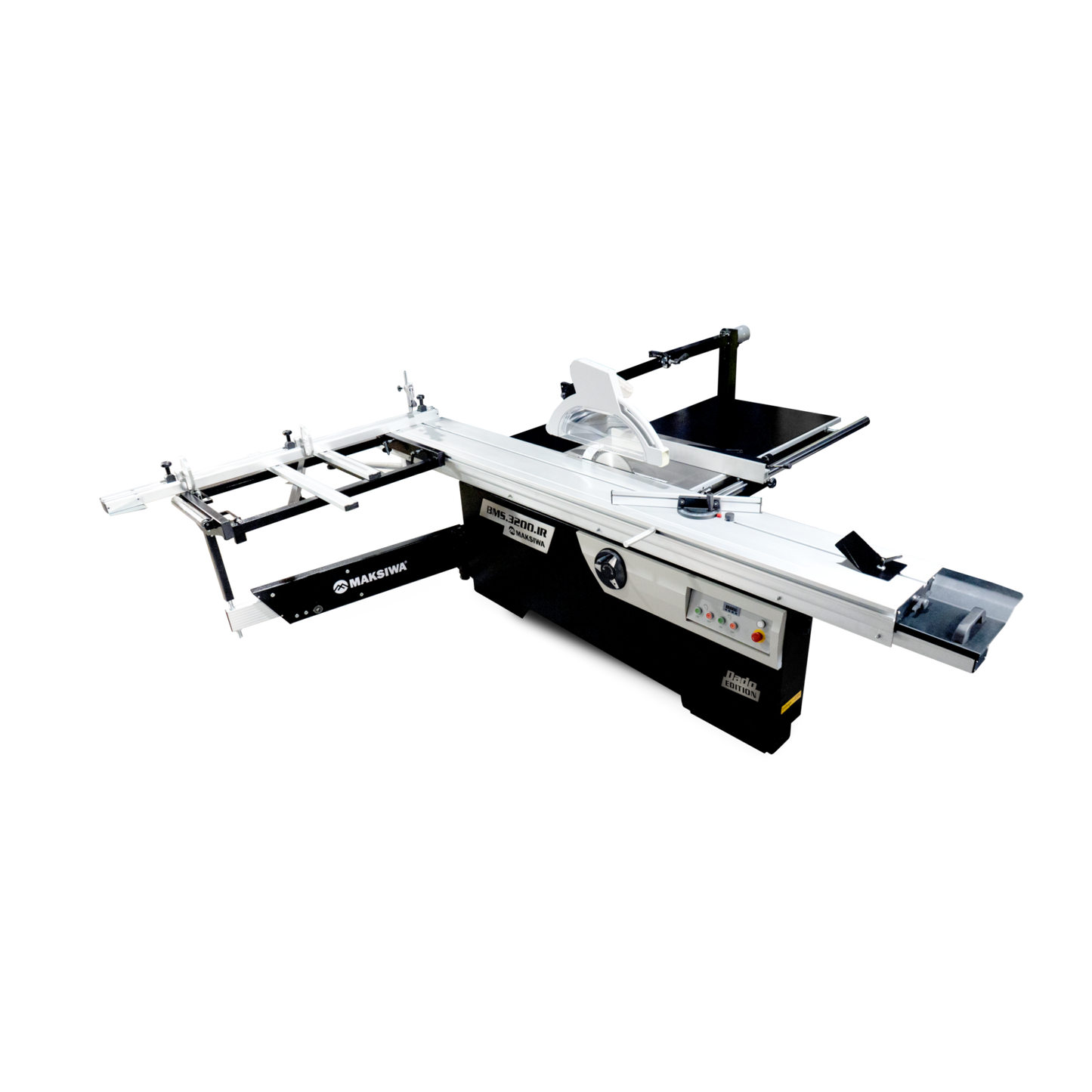

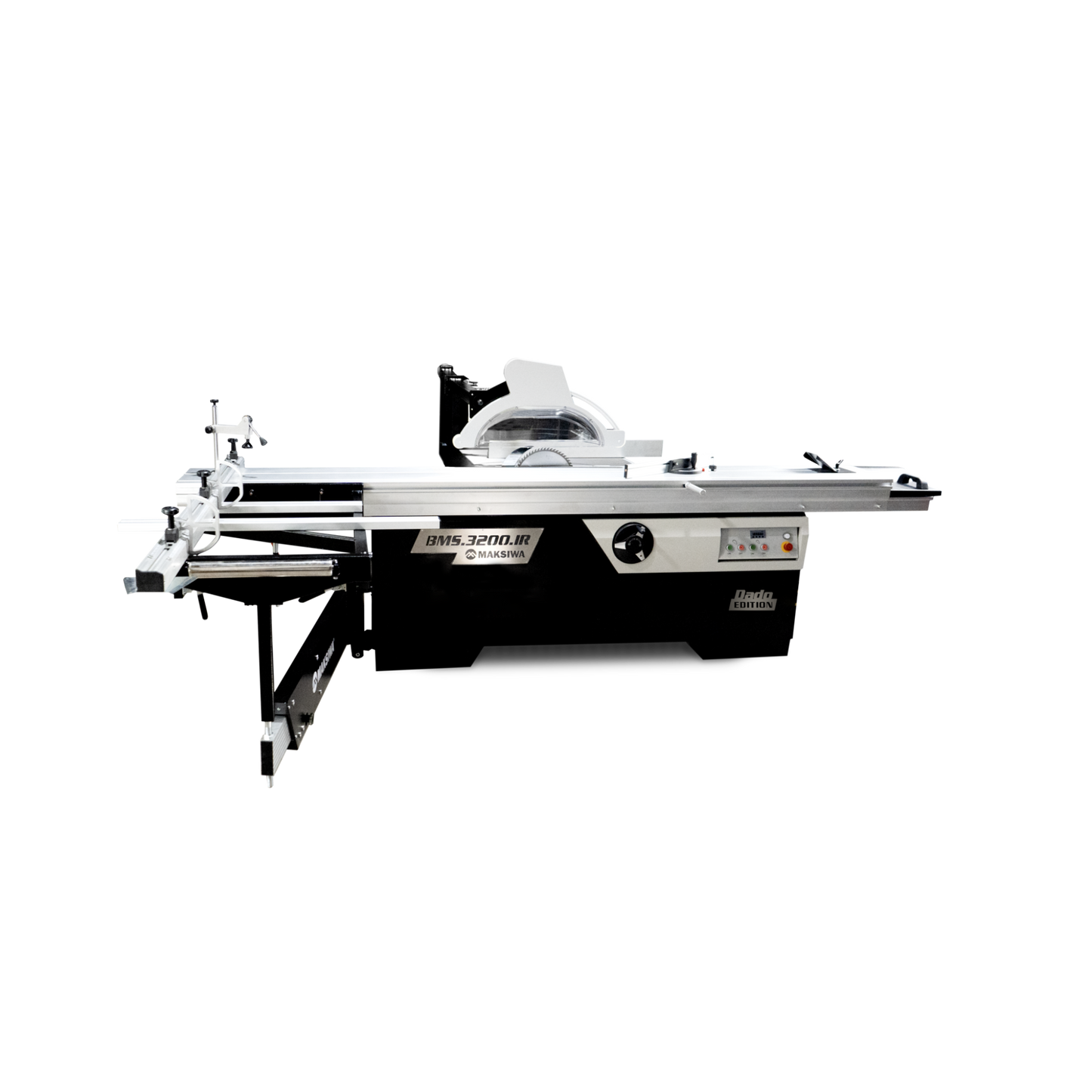

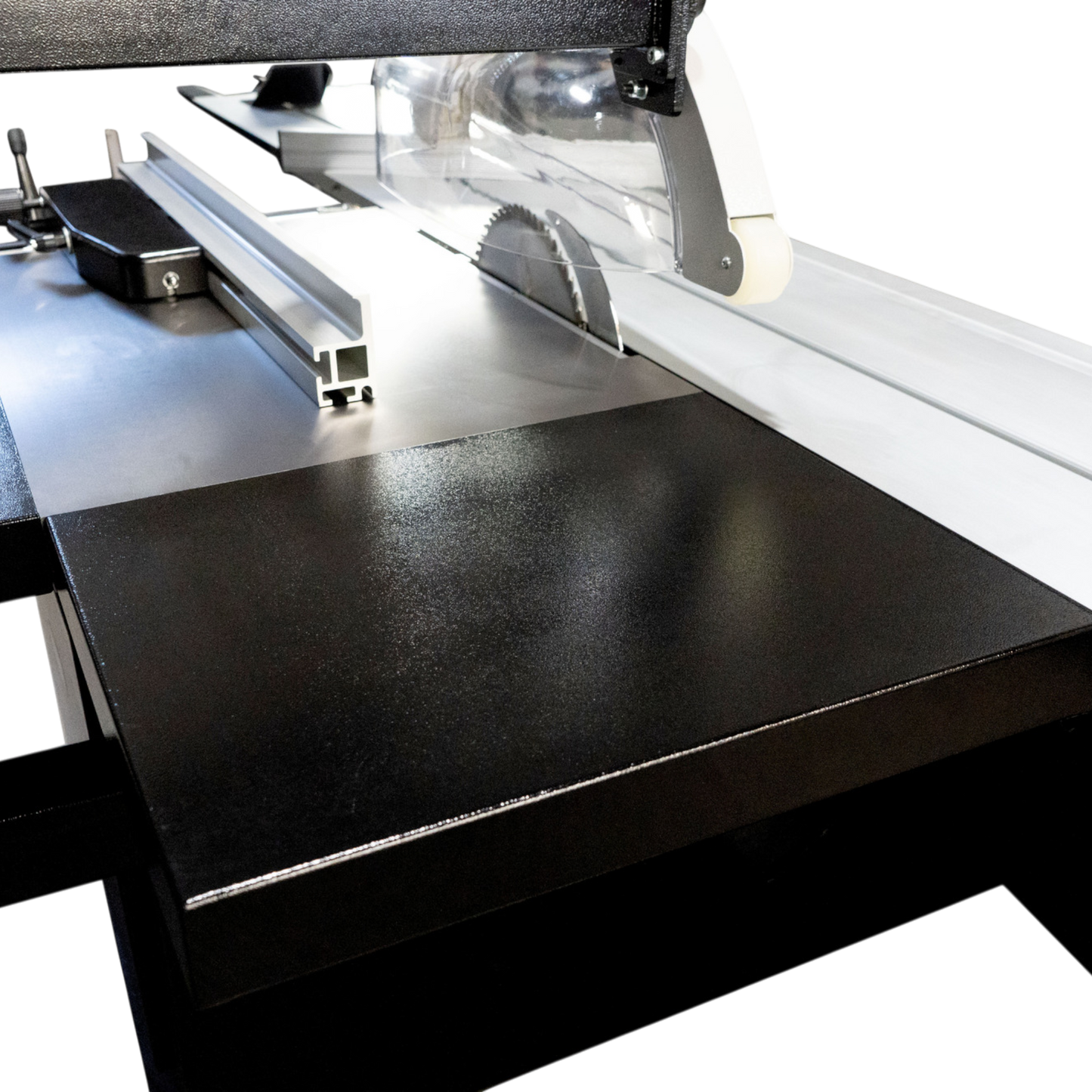

Full-size 3200mm sliding panel saw for large-format sheet cutting.
The Maksiwa BMS.3200.IR features a 3200mm sliding table and a powerful 5HP motor, available in single or 3-phase, making it ideal for high-volume panel cutting operations.

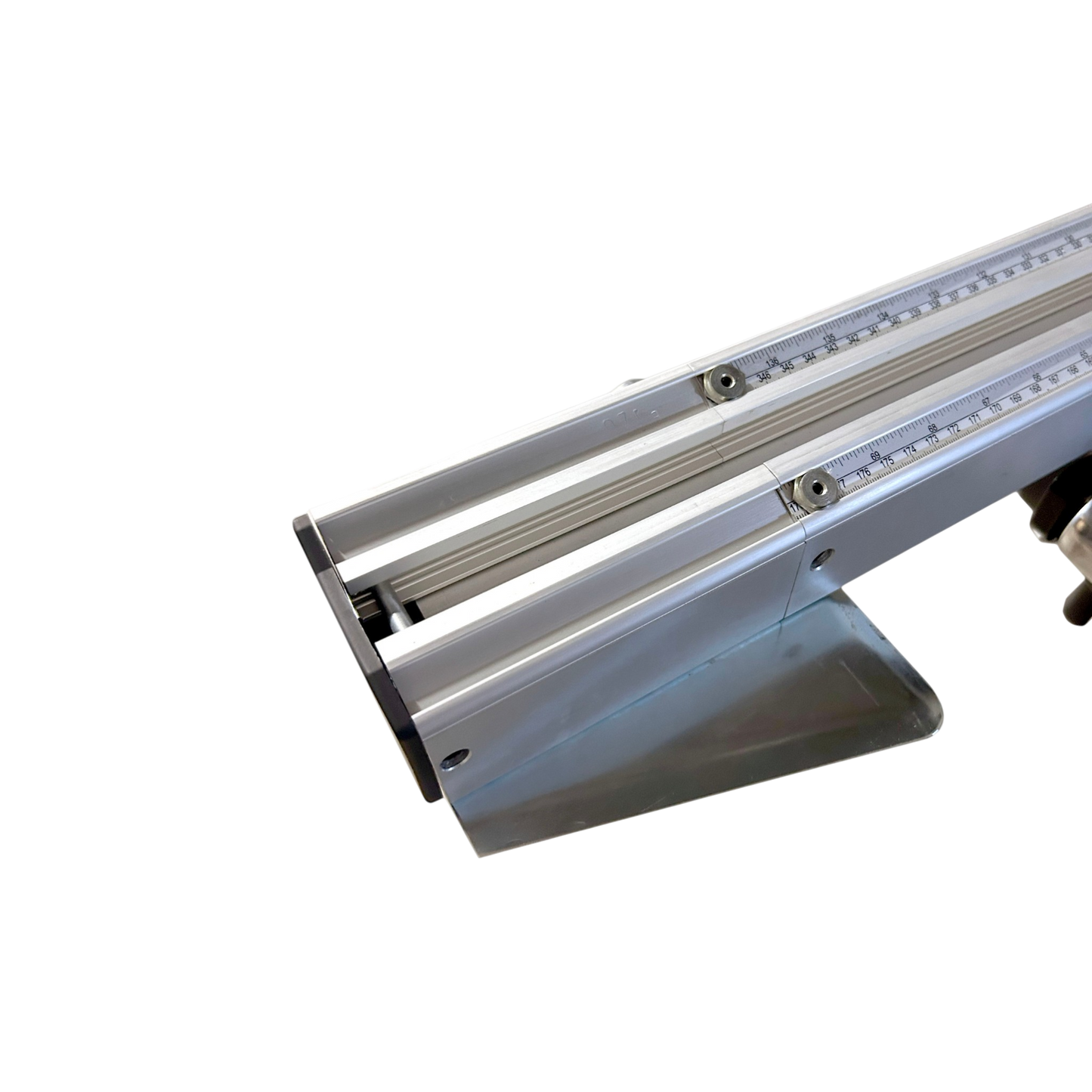

3200mm sliding table
5HP – 1 Phase or 3 Phase 220V motor
Infrared fence system (IR)
2-year limited manufacturer warranty
Technical Information +
Main Motor
5 HP / 4000 RPM 3.7 Kw

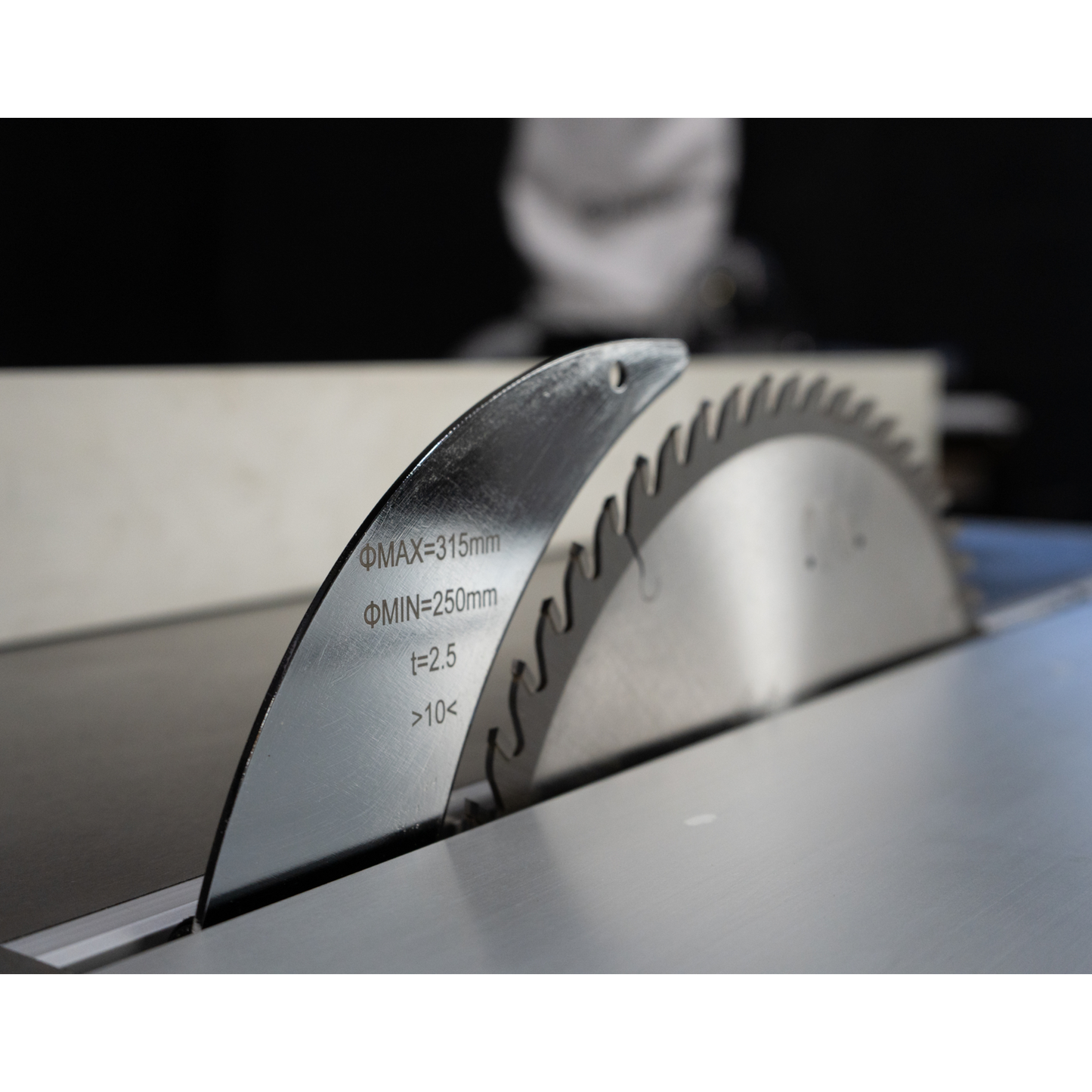

Max Blade Diameter
12"" - 305 mm
Main Blade Arbor
1 3/16"" - 30 mm

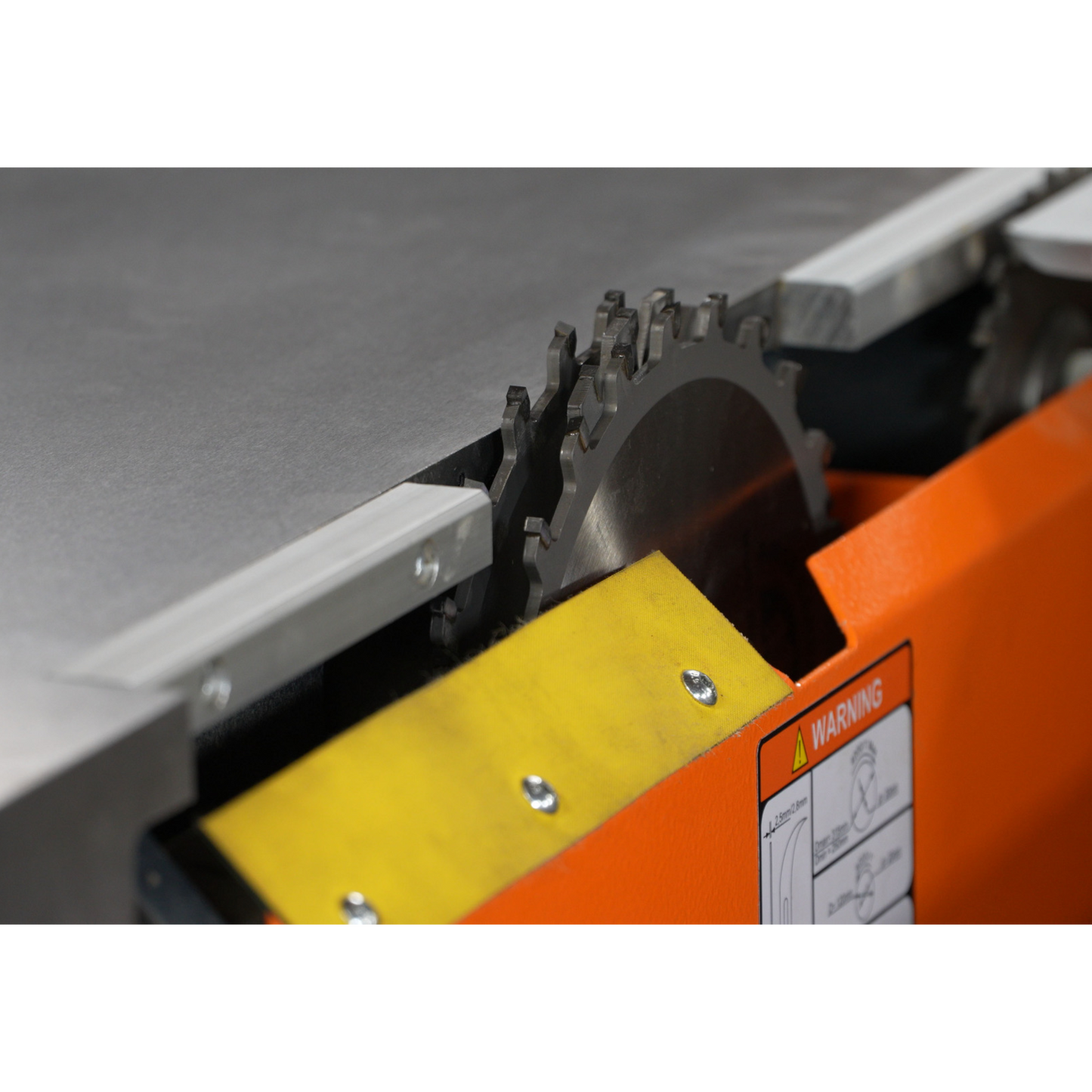

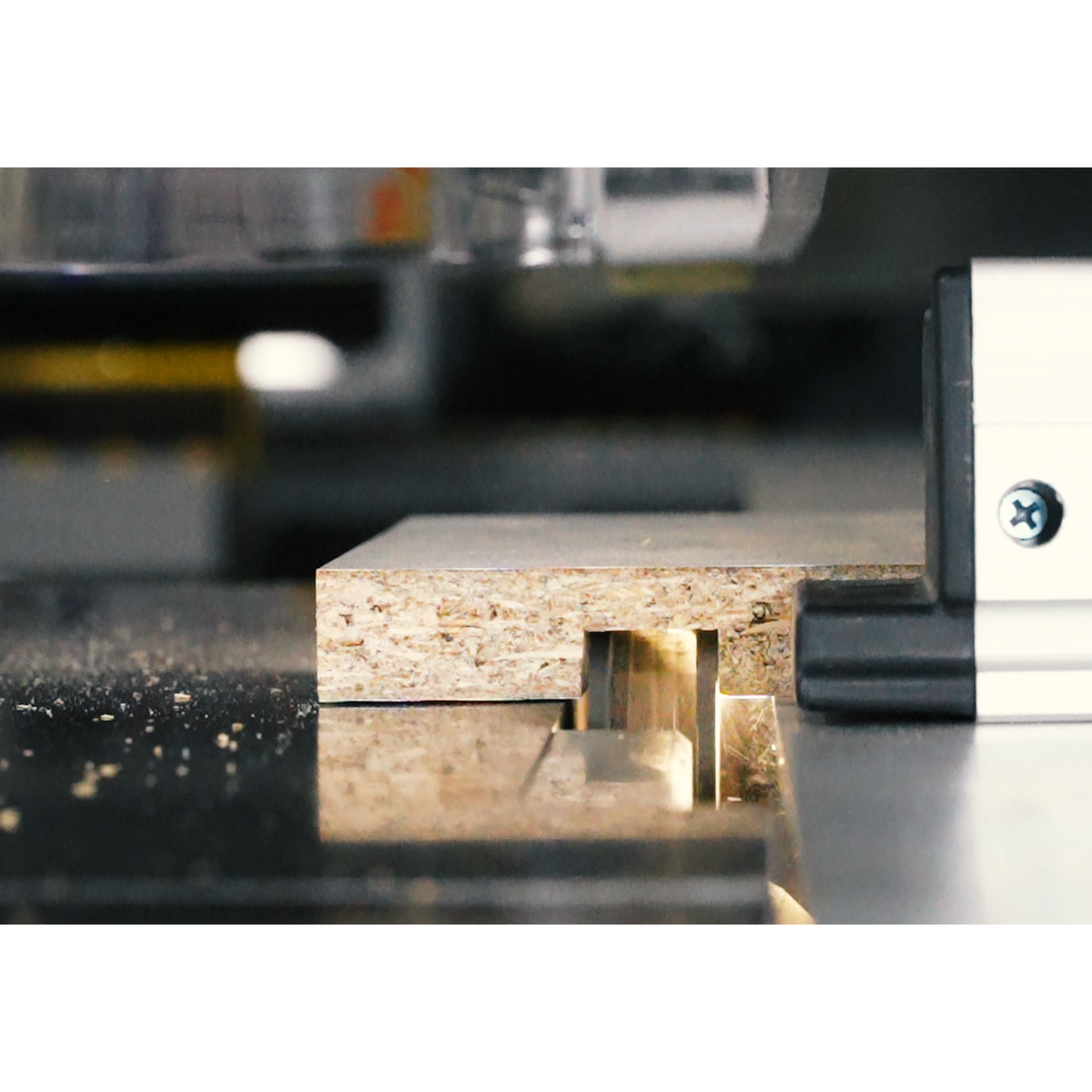

Max Dado Blade Diameter
8"" - 200 mm
Max Dado Blade Width
1 1/4"" - 30 mm
Dado Blade Arbor
1 3/16"" - 32 mm
Main Blade Max Cutting Height at 90°
3 1/2"" - 90 mm
Main Blade Cutting Height at 45°
2 1/8"" - 53 mm

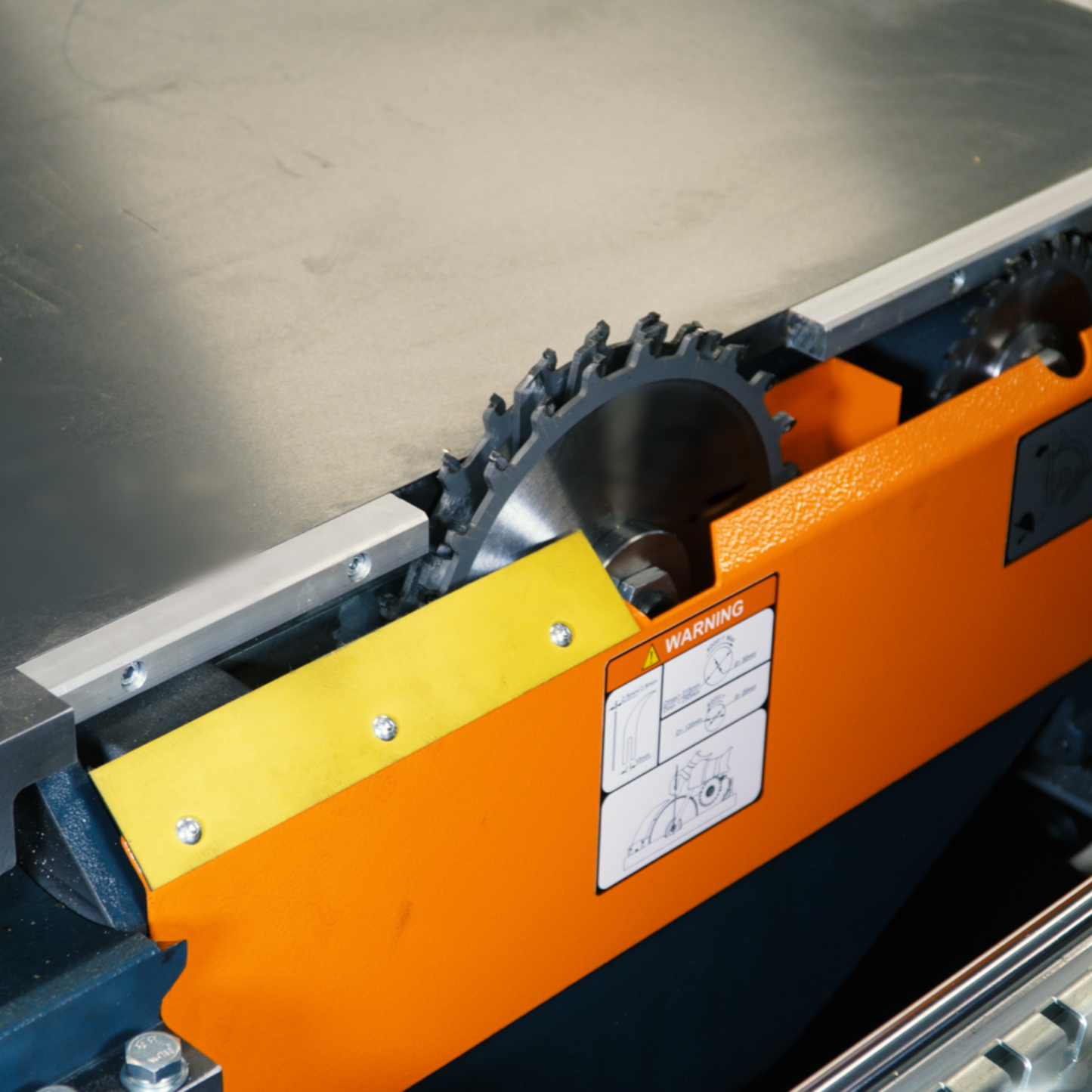

Scoring Motor
1 HP / 8000 RPM 0.74 kw
Scoring Motor Blade
4 3/4"" - 120 mm
Scoring Blade Arbor
3/4"" - 20 mm
Scoring Blade Type
Conical
Max Ripping Capacity
51"" - 1295 mm
Crosscut Capacity
126"" - 3200 mm

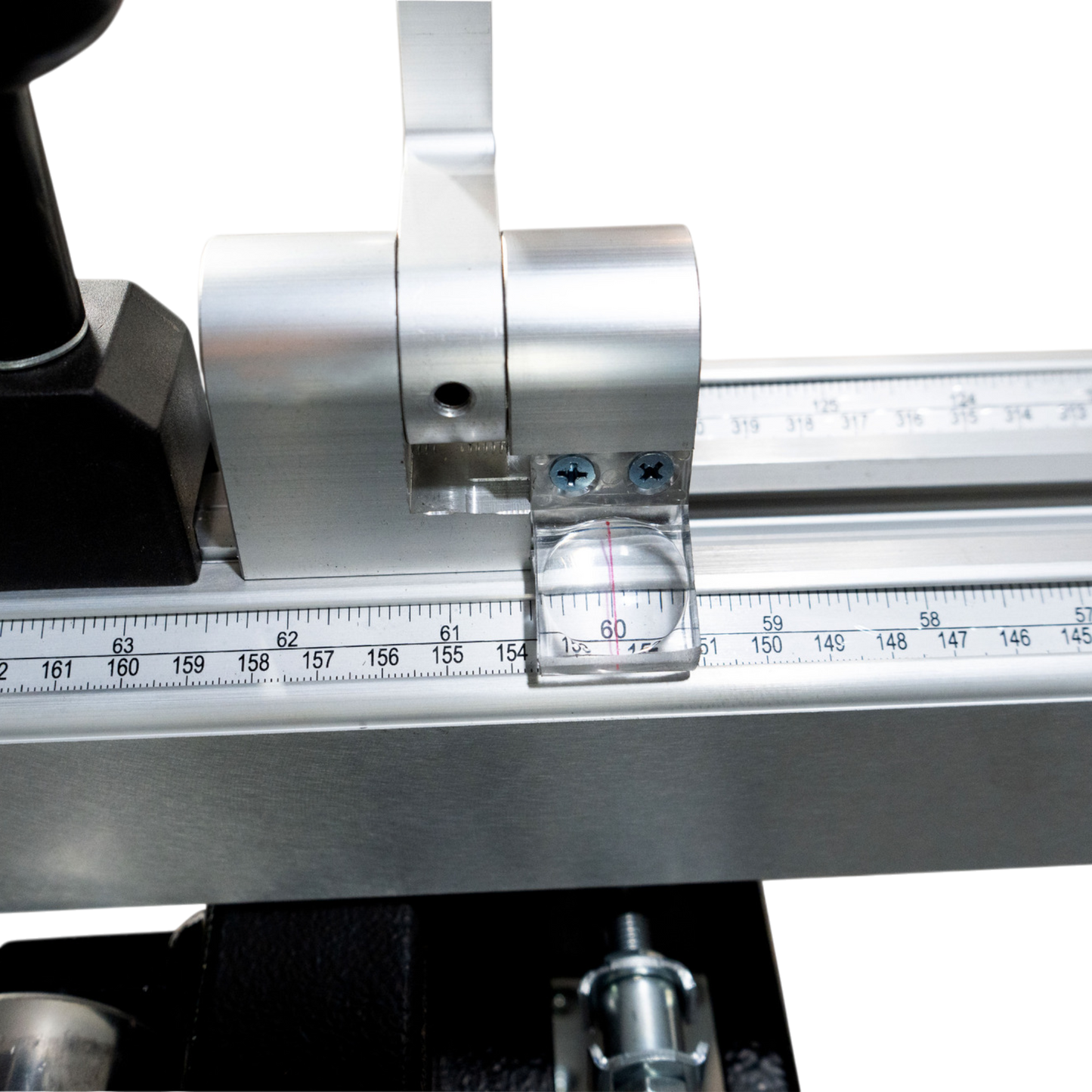

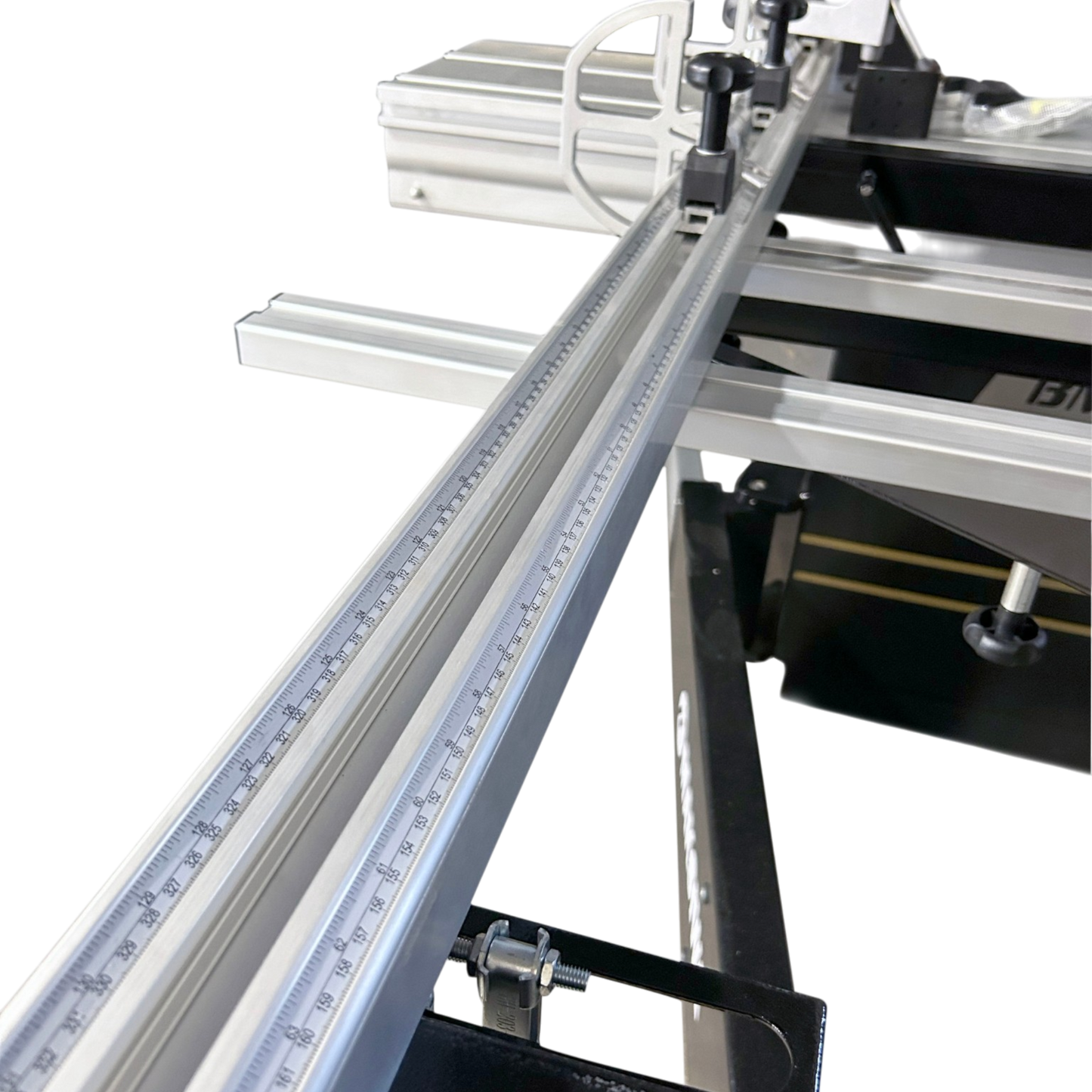

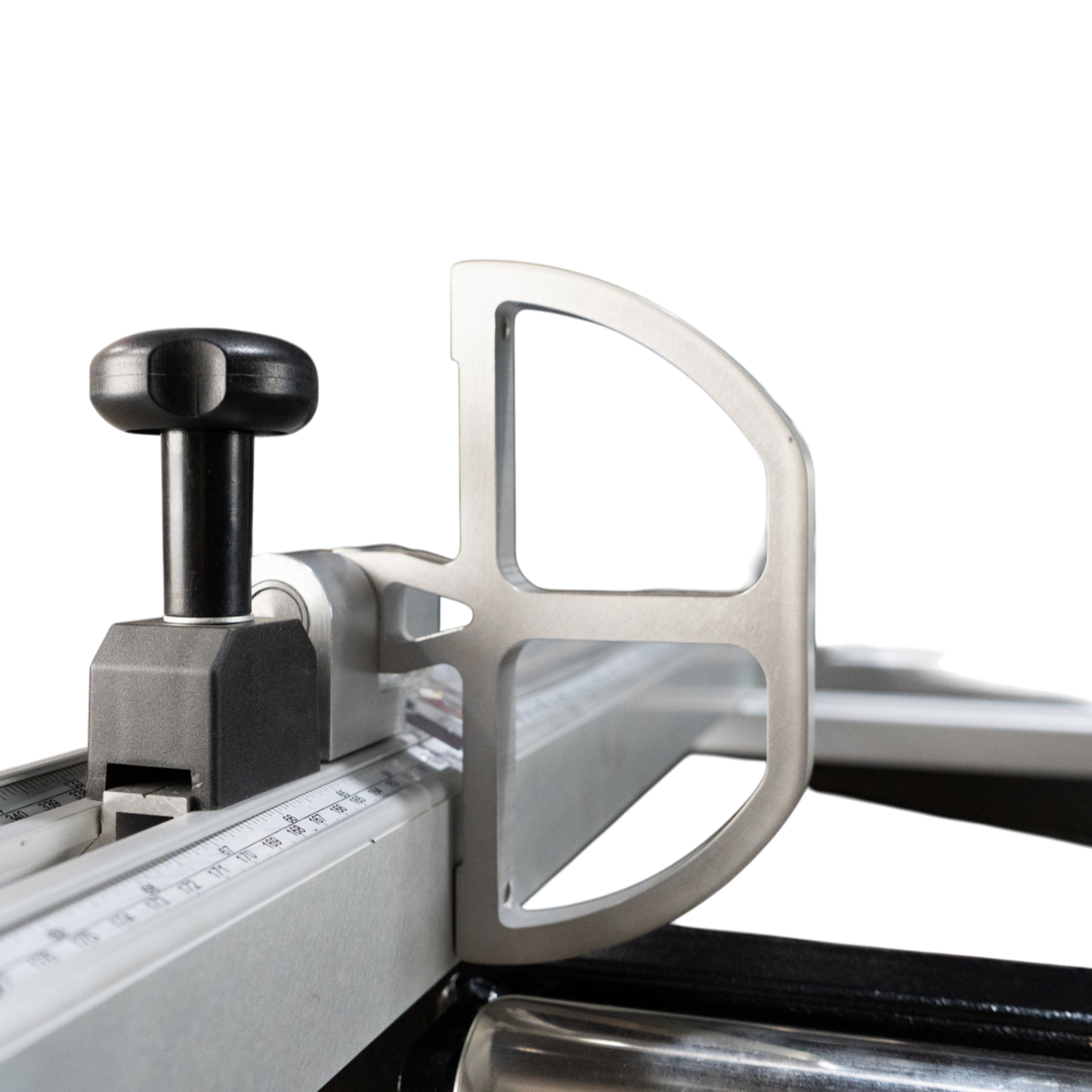

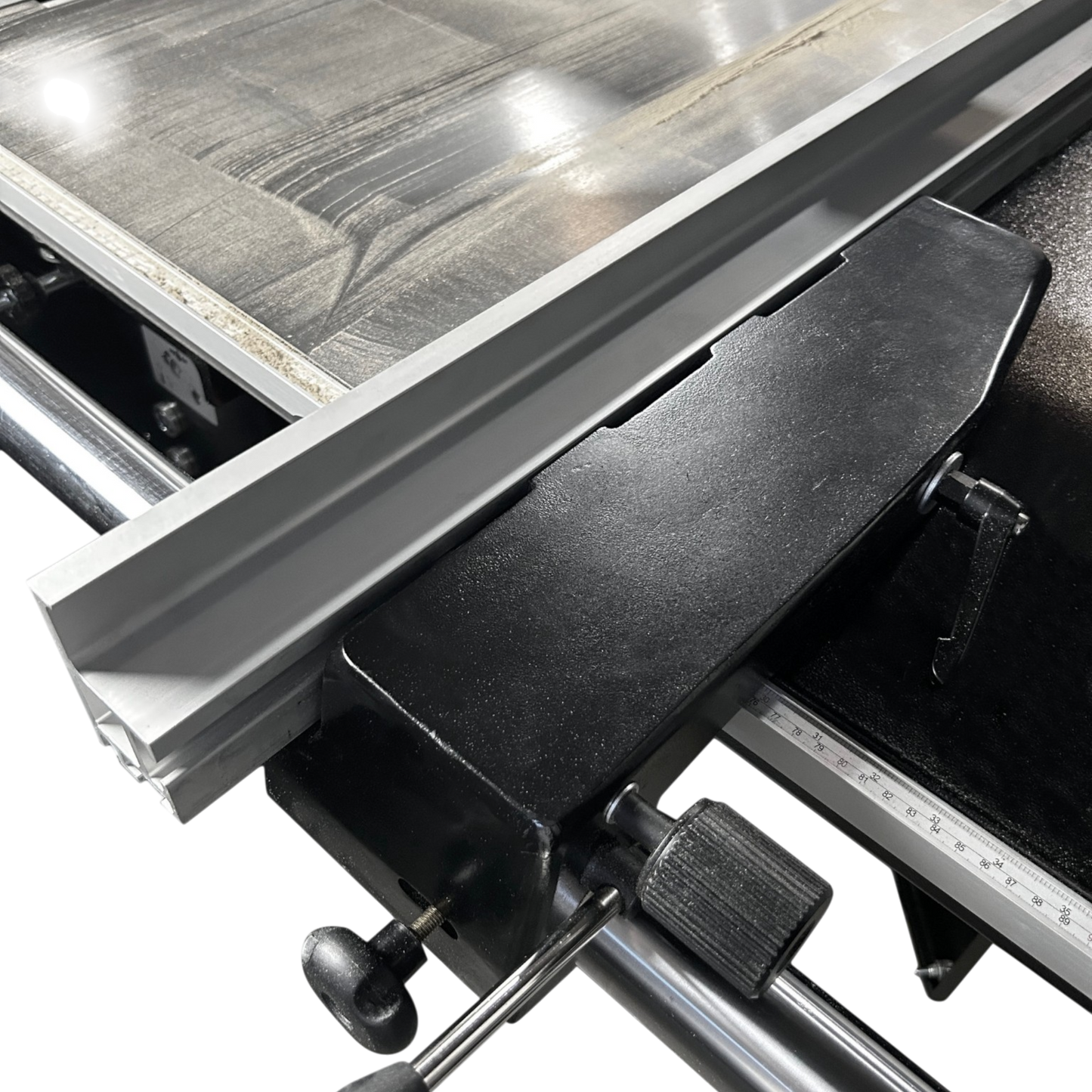

Crosscut Fence Capacity Closed/Open
74 3/4""/108"" | 1899/2743 mm
Machine Working Dimensions (LxWxH)
126"" x 137"" x 52"" | 3200 x 3480 x 1321 mm
Cast Iron Table Dimension (LxWxH)
31 1/2"" x 21"" x 34 3/4"" - 800 x 553 x 883 mm
Sliding Table Dimension (LxW)
126"" x 14 3/4"" | 3200 x 375 mm

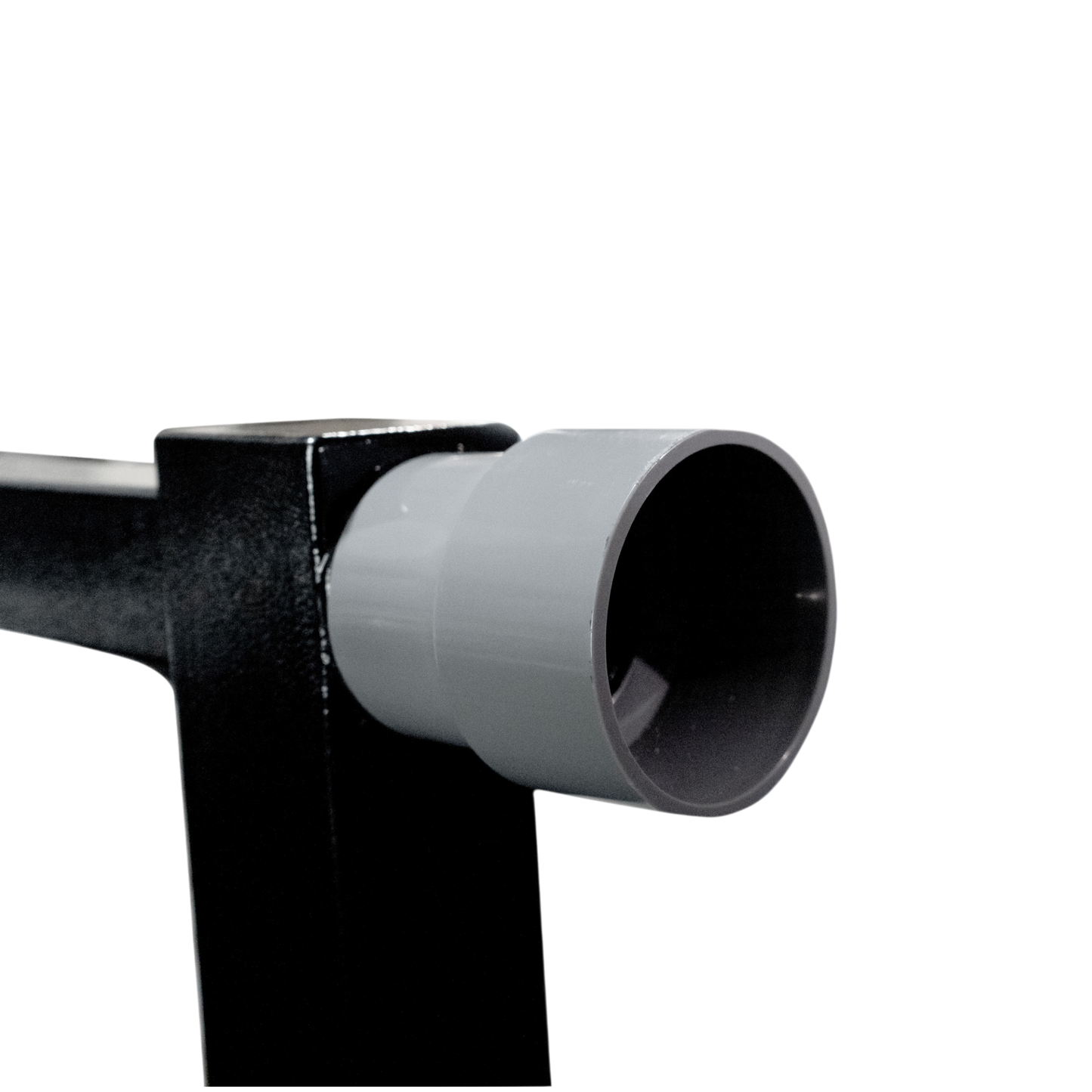

Dust Collection Port (2)
4"" | 100 mm
Minimum Dust Collection Requirements
1000 CFM | 28m/min
Electrical Specs
1 Phase 220V 22 Amps 60 Hz / 3 Phase 220V 11 Amps 60 Hz
Cast Iron Crate Weight Net/Gross
1257 lbs | 570 kg
Sliding Table Crate Dimensions (LxWxH)
140"" x 19"" x 8 1/2""
Sliding Table Crate Weight Net/Gross
282 lbs | 128 kg
