Maksiwa Sliding Panel Saw BMS1600IR Dado Edition
Maksiwa Sliding Panel Saw BMS1600IR Dado Edition
Regular price
$6,399.00 USD
Regular price
Sale price
$6,399.00 USD
Quantity
Couldn't load pickup availability
Professional 1600mm sliding panel saw for accurate sheet cutting.

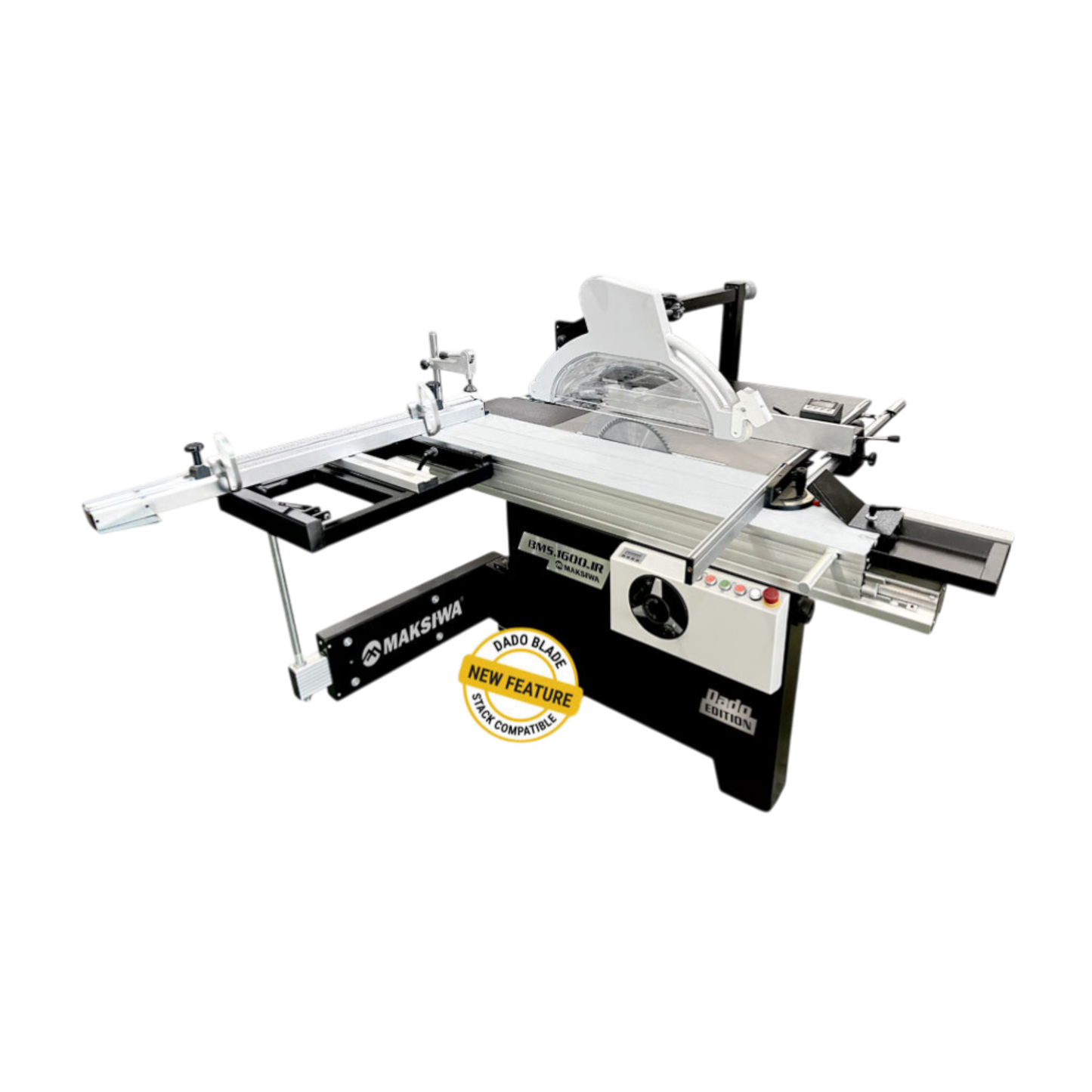

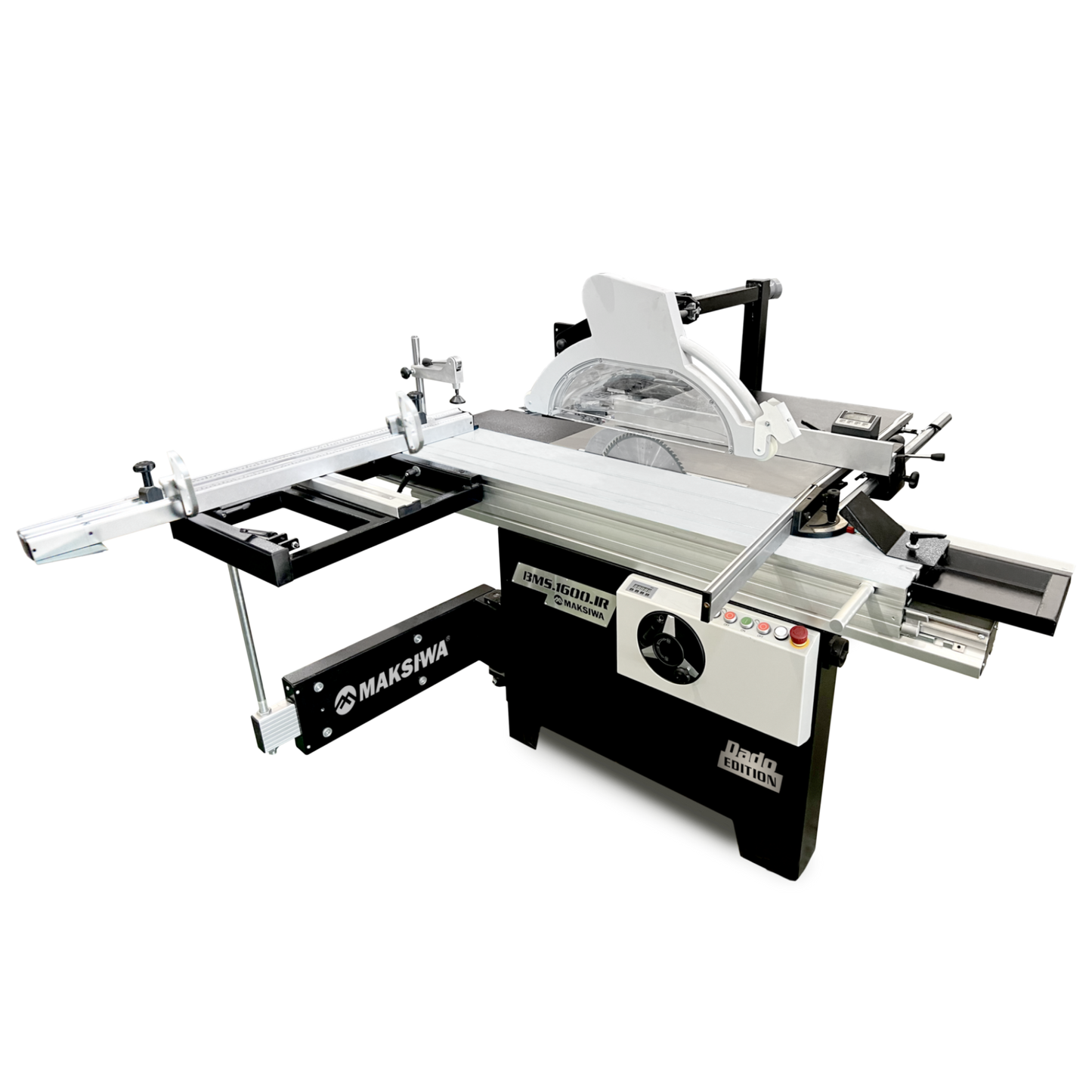

The Maksiwa BMS.1600.IR is a 5HP single-phase sliding panel saw with a 1600mm sliding table, ideal for cutting large sheet materials with precision and speed in professional woodworking shops.
- 1600mm sliding table
- 5HP – 1 Phase 220V motor

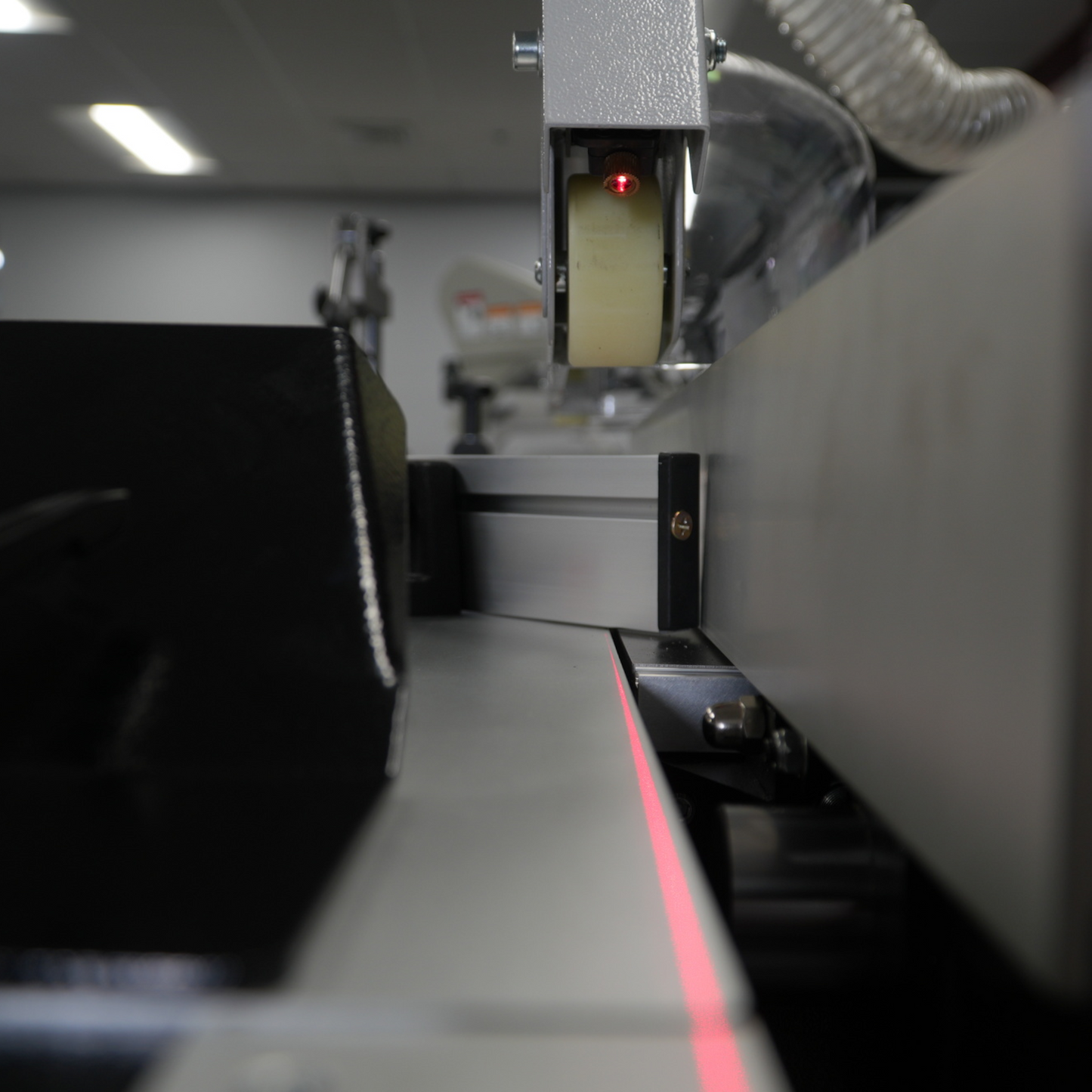

- Infrared fence system (IR)
- 2-year limited manufacturer warranty
Technical Information +
| Main Motor | 5 HP / 4000 RPM 3.7 Kw |
| Max Blade Diameter | 12" - 305 mm |
| Main Blade Arbor | 1 3/16" - 30 mm |

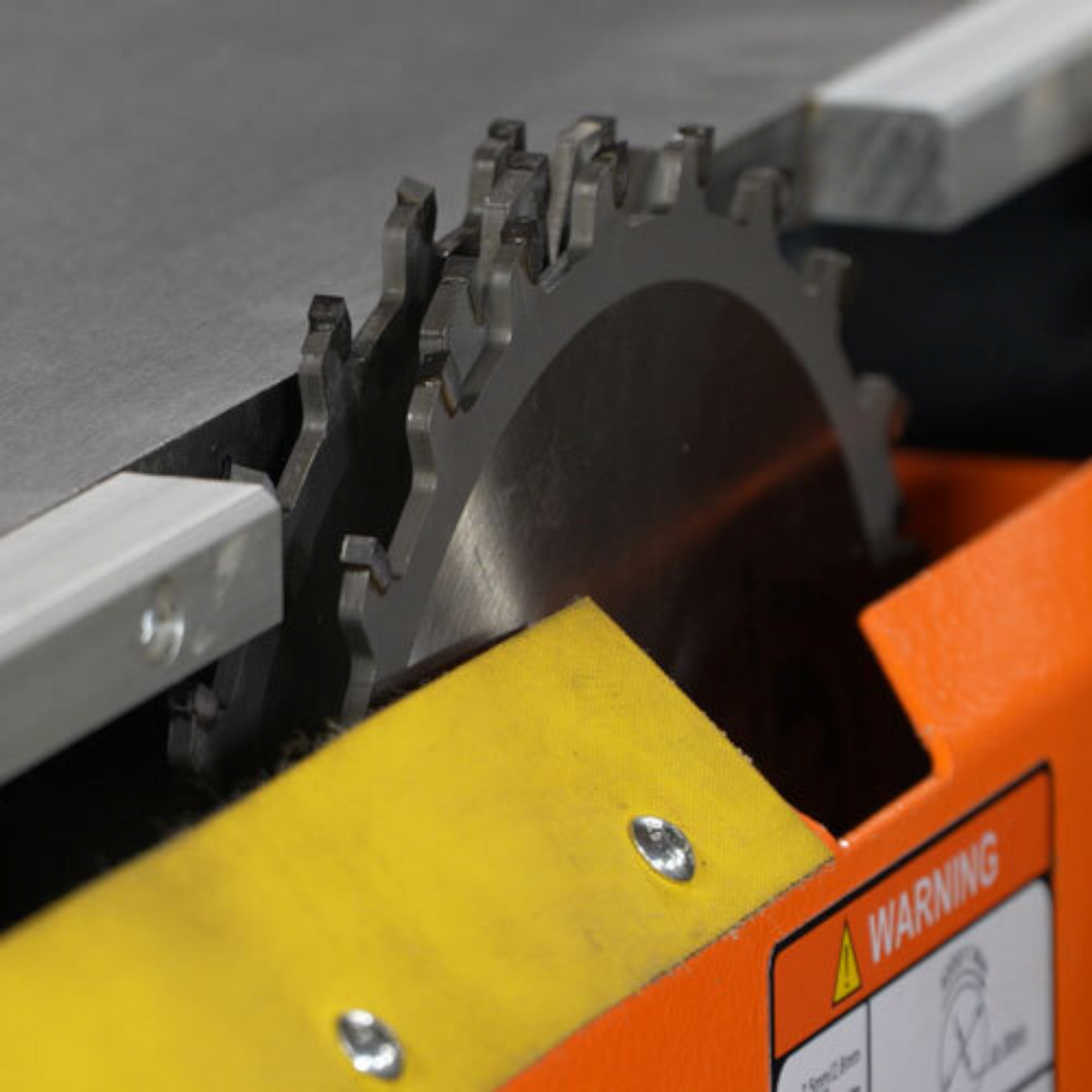

| Max Dado Blade Diameter | 8" - 200 mm |
| Max Dado Blade Width | 1 1/4" - 30 mm |

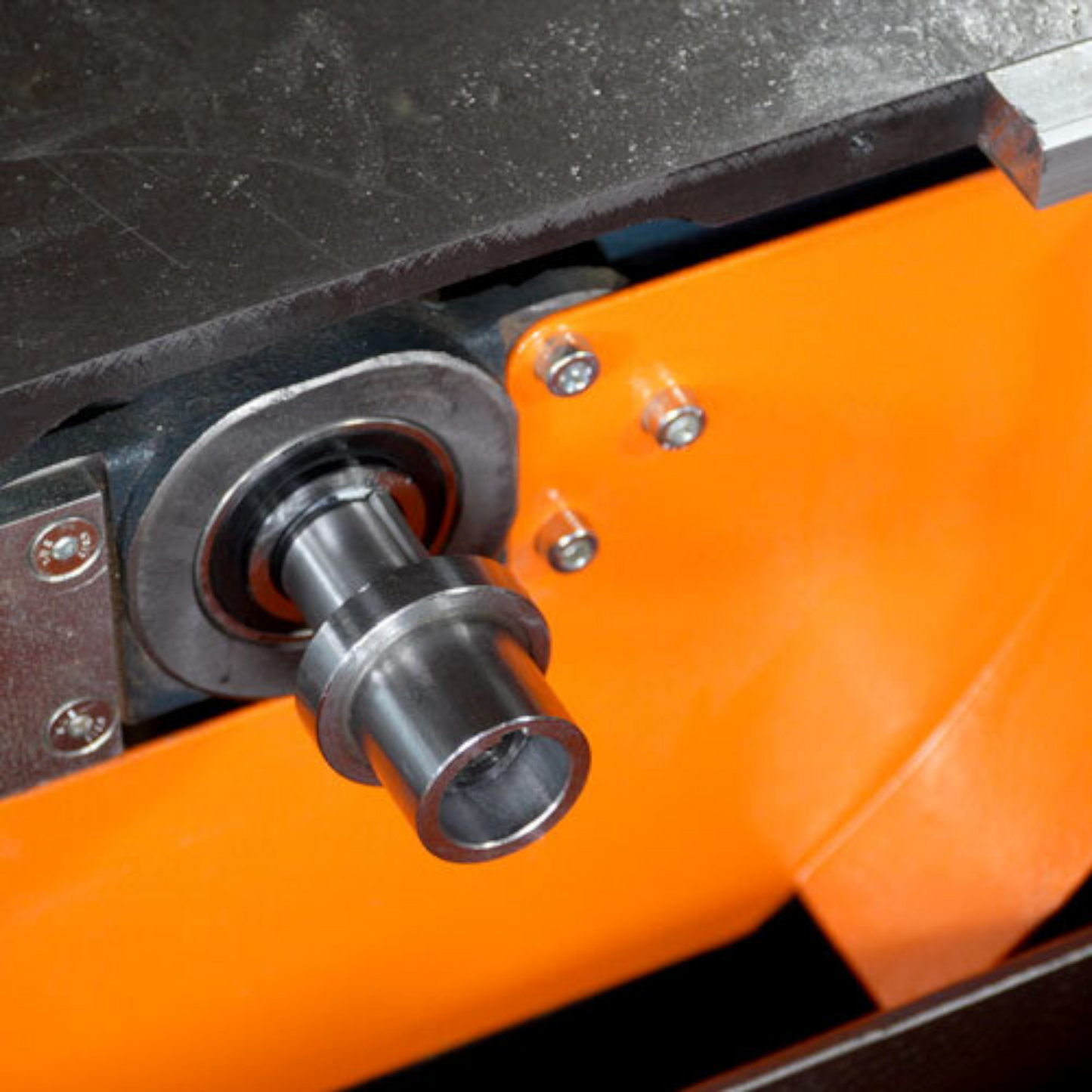

| Dado Blade Arbor | 1 3/16" - 32 mm |
| Main Blade Max Cutting Height at 90° | 3" - 76 mm |
| Main Blade Cutting Height at 45° | 2 1/8" - 53 mm |
| Scoring Motor | 1 HP / 8000 RPM 0.74 kw |
| Scoring Motor Blade | 4 3/4" - 120 mm |
| Scoring Blade Arbor | 3/4" - 20 mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 34 3/4" - 900 mm |
| Crosscut Capacity | 63" | 1600 mm |
| Crosscut Fence Capacity Closed/Open | 48"/80" | 1219/2032 mm |

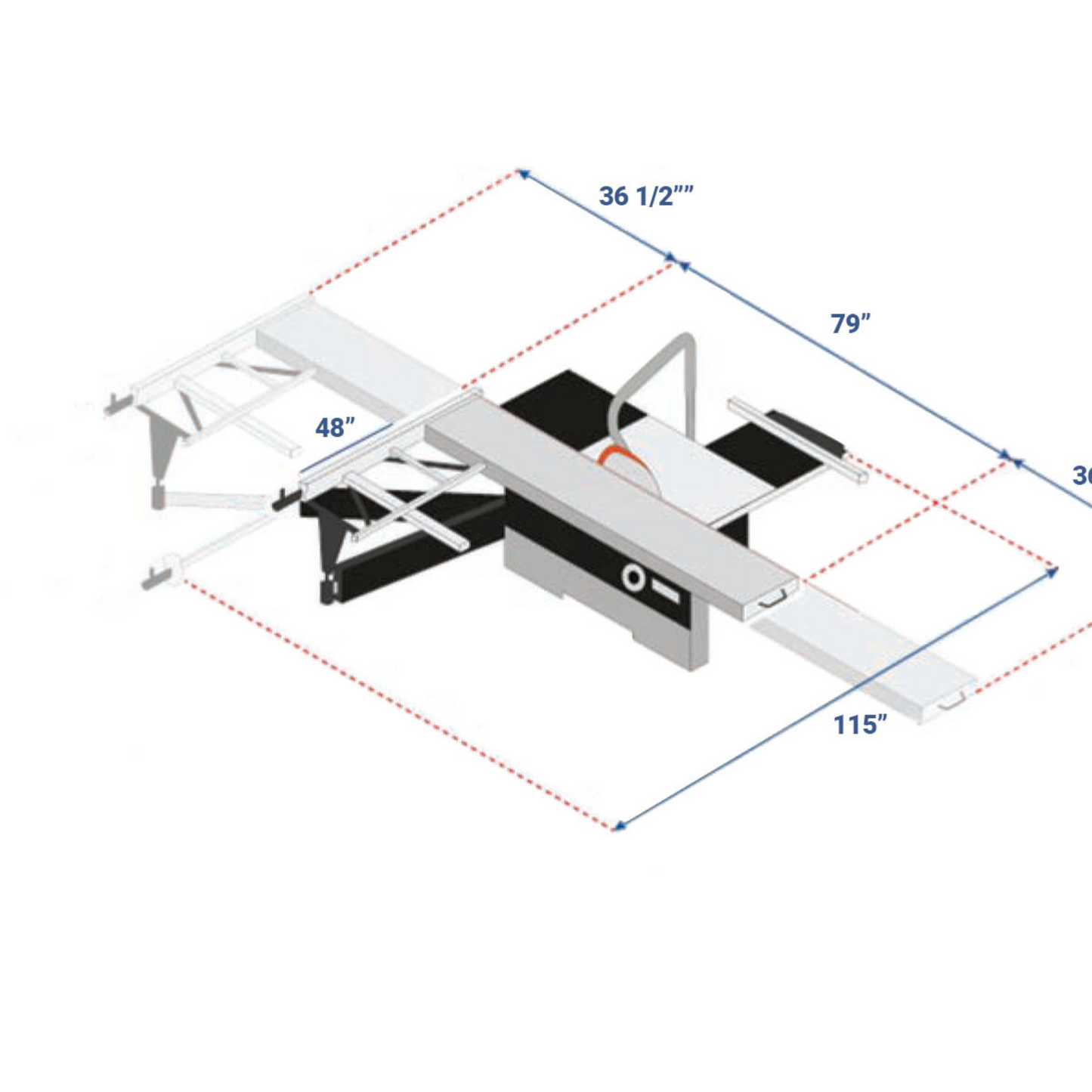

| Machine Working Dimensions (LxWxH) | 79" x 115" x 66" |
| Cast Iron Table Dimension (LxWxH) | 31 1/2" x 21" x 32" - 800 x 530 x 883 mm |
| Sliding Table Dimension (LxW) | 63" x 12" |

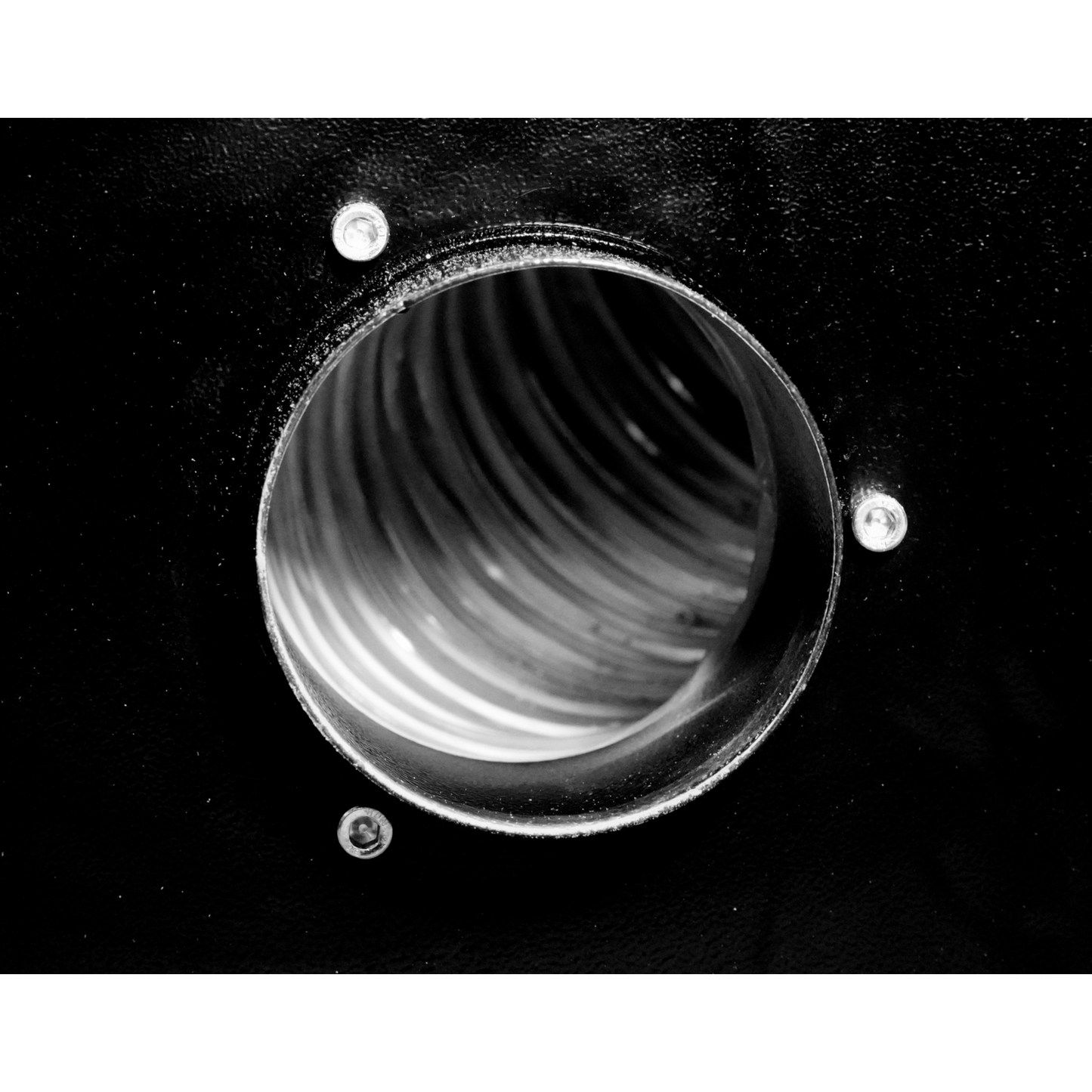

| Dust Collection Port (2) | 4" | 100 mm |
| Minimum Dust Collection Requirements | 1000 CFM | 28m/min |
| Electrical Specs | 1 Phase 220V 30 Amps 60 Hz |
| Cast Iron Crate Dimensions (LxWxH) | 31 1/2" x 21" x 32" |
| Cast Iron Crate Weight Net/Gross | 770 lbs |
| Sliding Table Crate Dimensions (LxWxH) | 63" x 12" |
| Sliding Table Crate Weight Net/Gross | 175 lbs |
