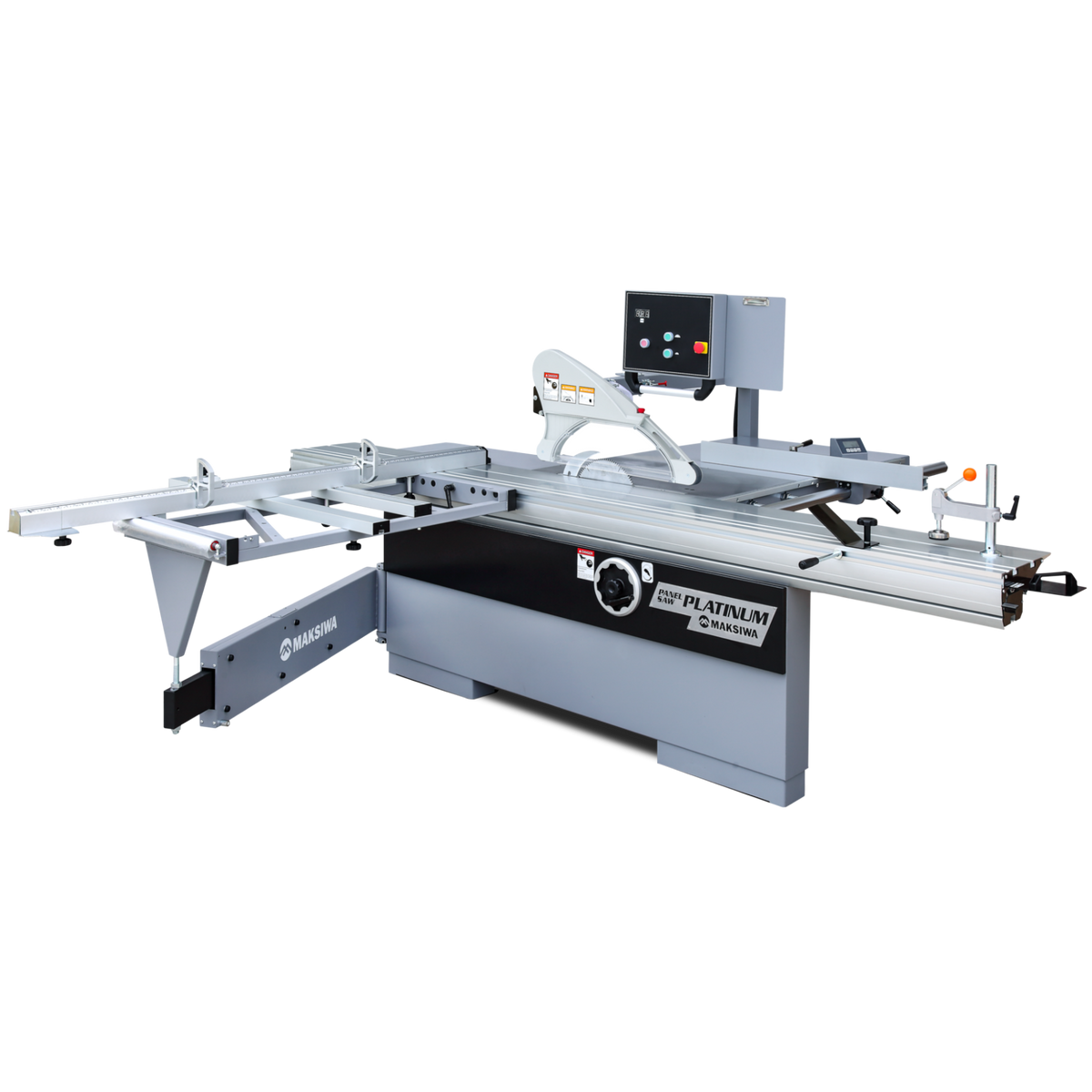

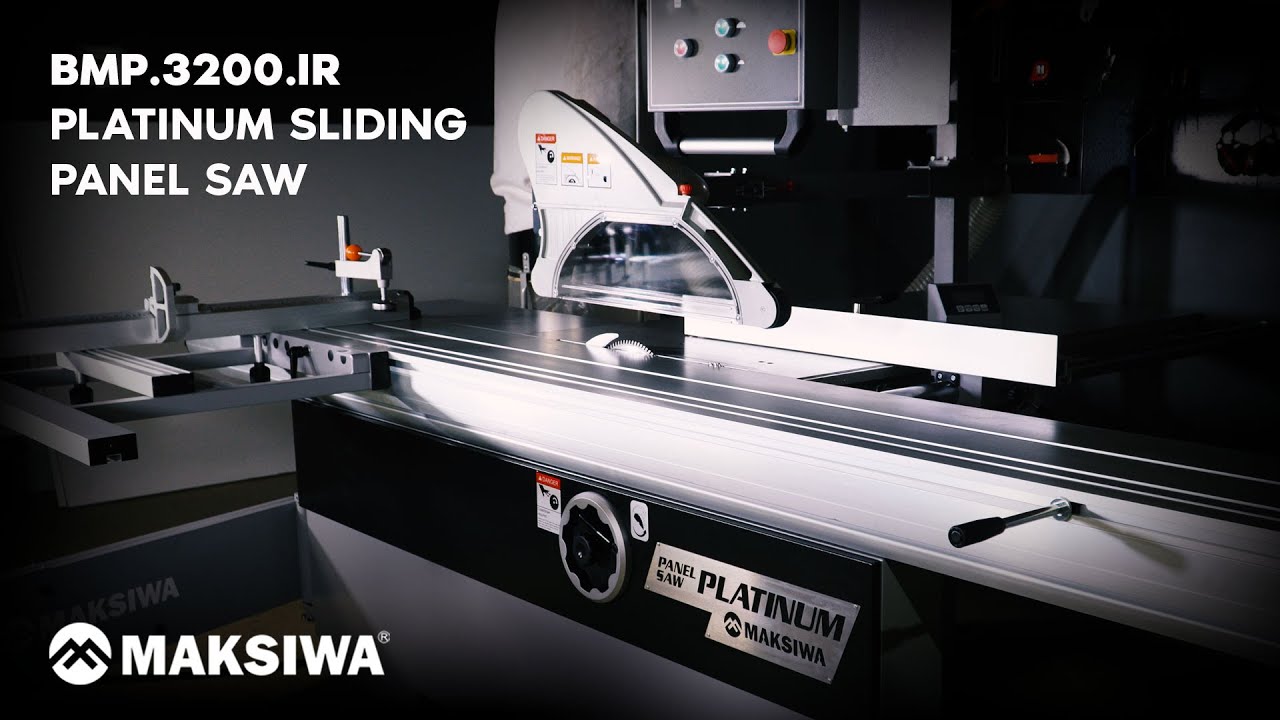

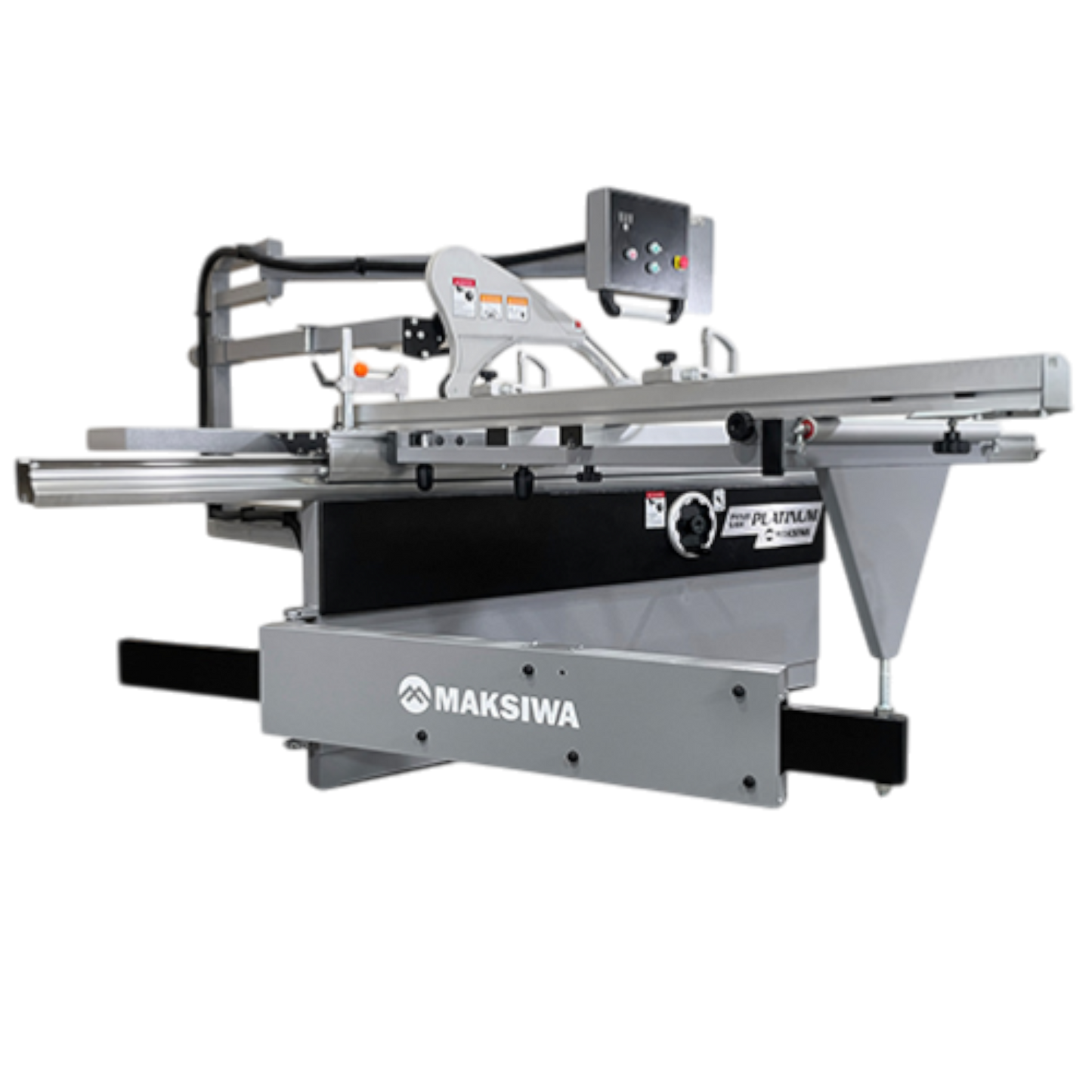

Maksiwa Sliding Panel Saw BMP3200IR Platinum
Maksiwa Sliding Panel Saw BMP3200IR Platinum
Regular price
$12,499.00 USD
Regular price
Sale price
$12,499.00 USD
Quantity
Couldn't load pickup availability
Platinum series 3200mm sliding panel saw with 7.5HP 3-phase power.
The Maksiwa BMP.3200.IR Platinum is designed for industrial-level panel cutting operations, offering 7.5HP 3-phase power and Platinum-grade components for maximum durability and performance.
- 3200mm sliding table
- 7.5HP – 3 Phase 220V motor
- Platinum series premium components
- 2-year limited manufacturer warranty
Technical Information +
| Main Motor | 7.5 HP / 4000 RPM 5.5 kw |
| Max Blade Diameter | 14"" - 355 mm |
| Main Blade Arbor | 1 3/16"" - 30 mm |
| Main Blade Max Cutting Height at 90° | 3 1/2"" - 90 mm |
| Main Blade Cutting Height at 45° | 2 7/16"" - 63 mm |
| Scoring Motor | 3/4 HP / 8000 RPM 0.55 kw |
| Scoring Motor Blade | 4 3/4"" - 120 mm |
| Scoring Blade Arbor | 3/4"" - 20 mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 51"" - 1300 mm |
| Crosscut Capacity | 126"" - 3200 mm |

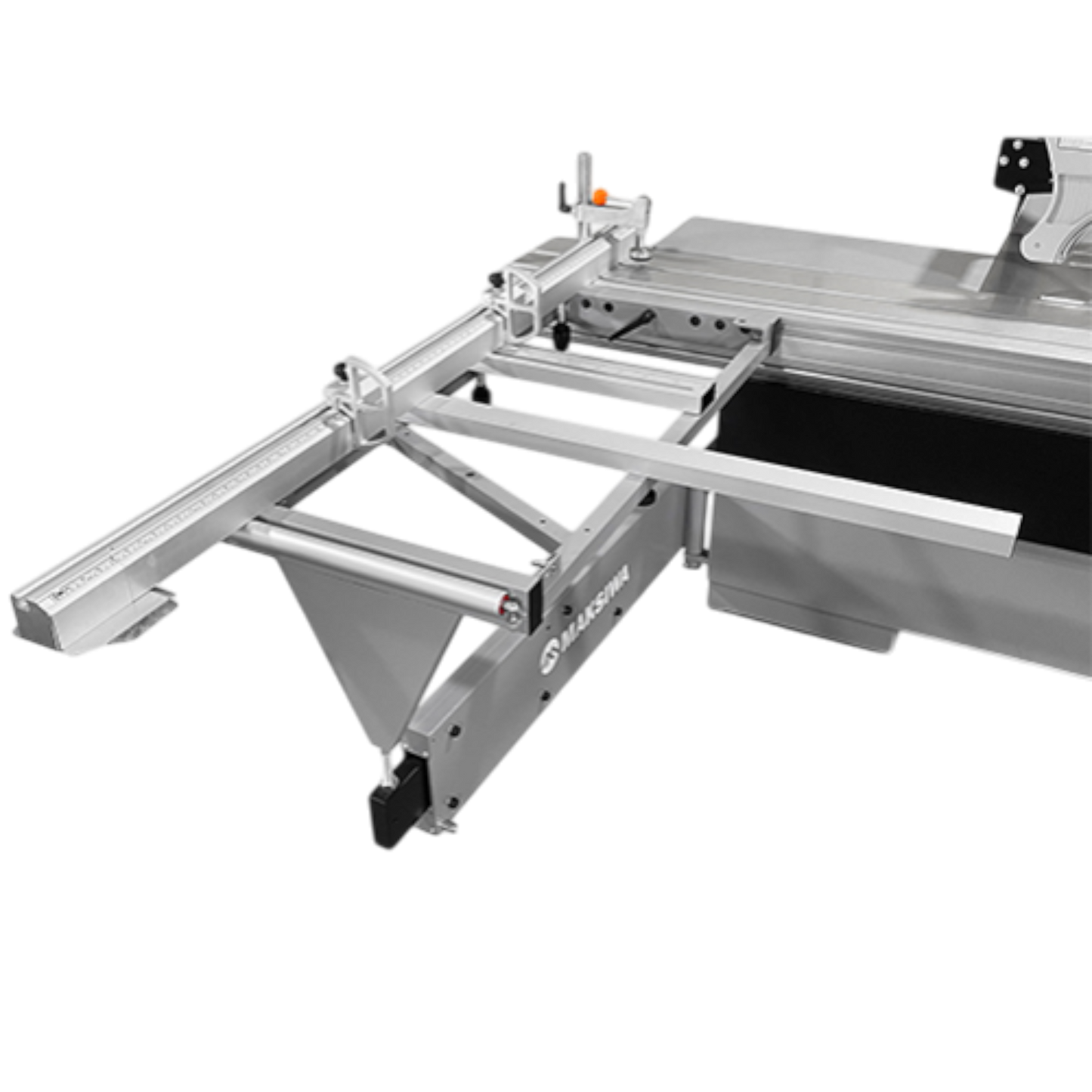

| Crosscut Fence Capacity Closed/Open | 78""/120"" - 1981/3048 mm |

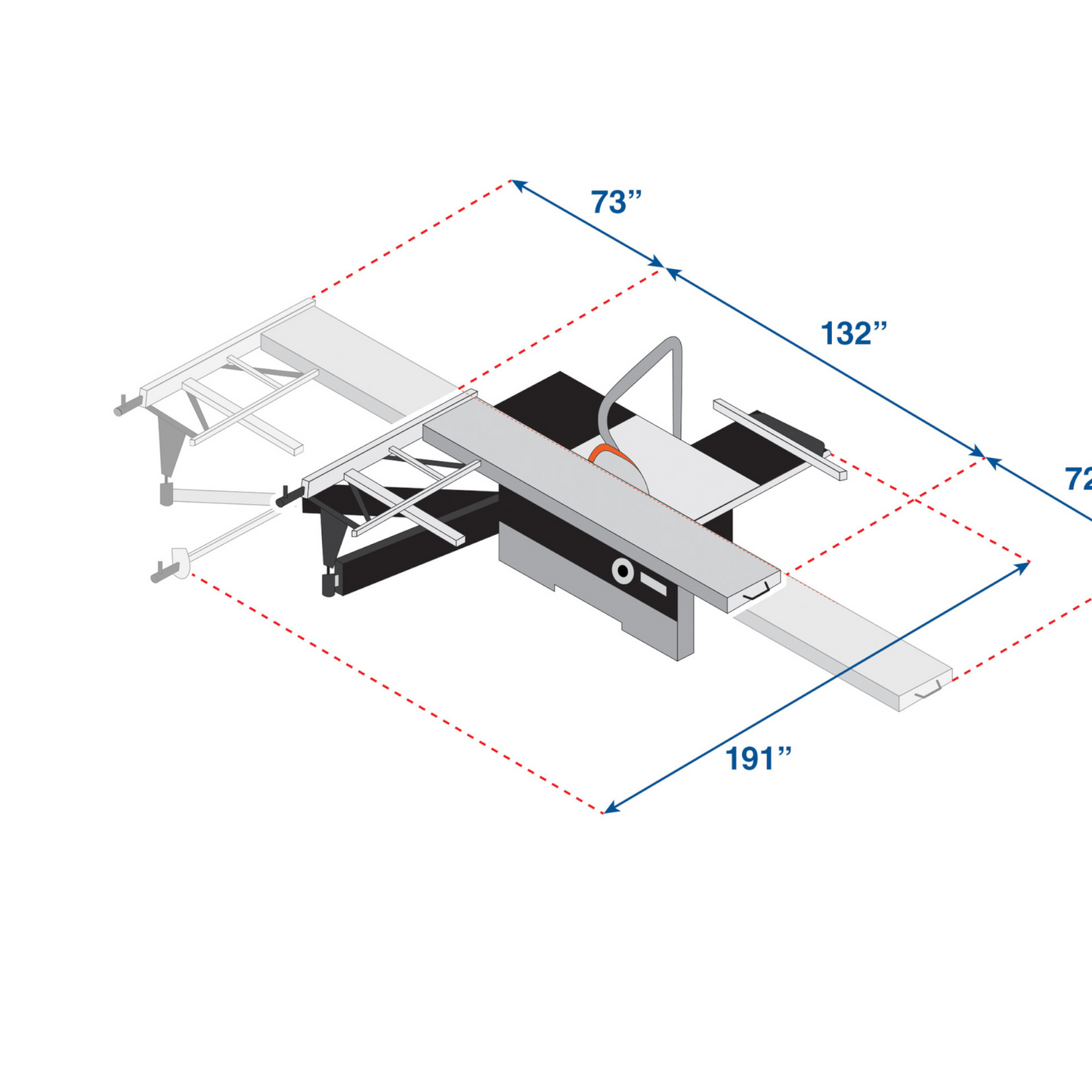

| Machine Working Dimensions (LxWxH) | 132"" x 137"" x 75"" - 3352 x 3479 x 1905 mm |
| Cast Iron Table Dimension (LxWxH) | 35"" x 21"" x 34"" - 896 x 548 x 864 mm |

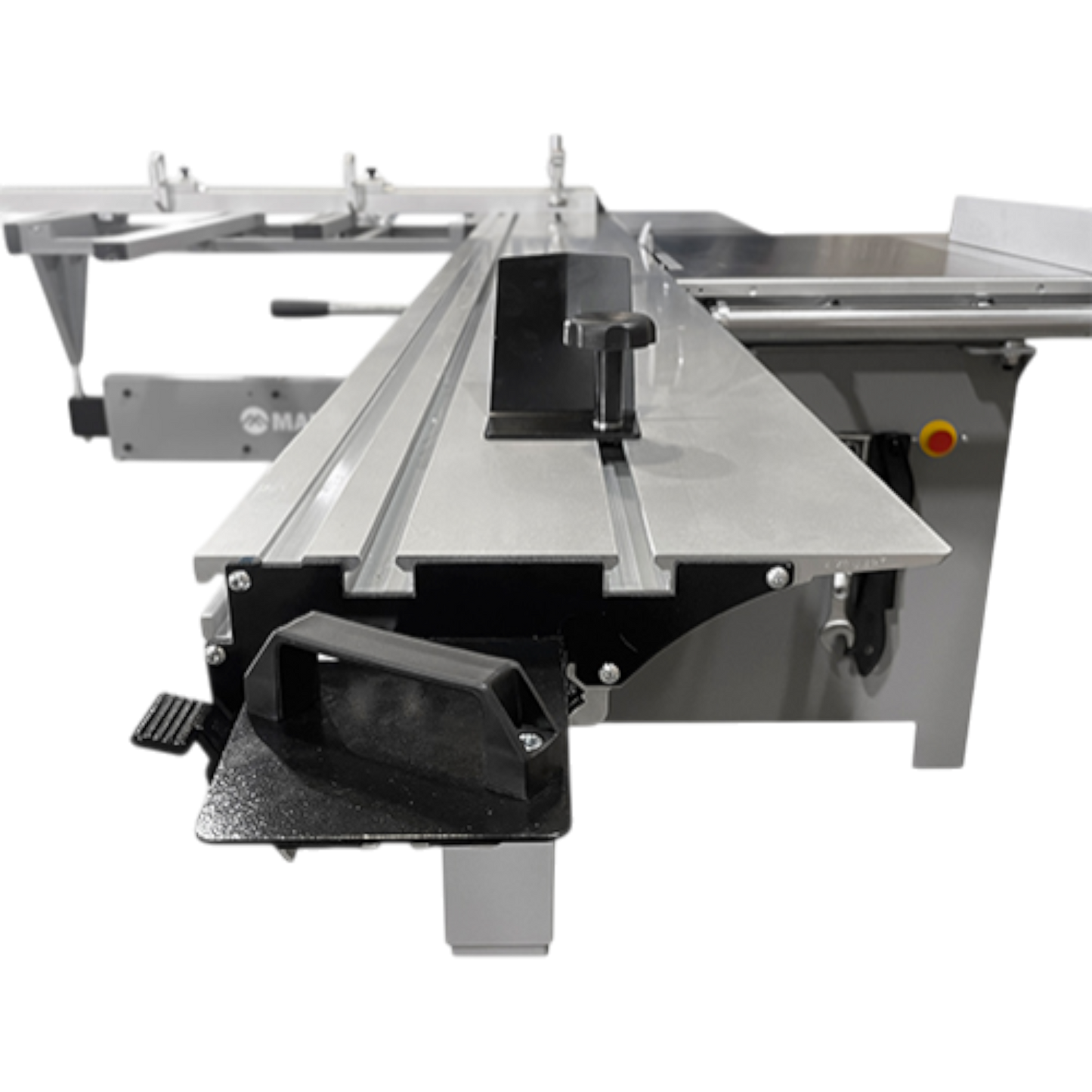

| Sliding Table Dimension (LxW) | 126"" x 14"" - 3200 x 358 mm |
| Dust Collection Port (2) | 4"" - 100 mm |
| Minimum Dust Collection Requirements | 1000 CFM - 28m/min |
| Electrical Specs | 3 Phase 220V 30 Amps 60 Hz |
| Cast Iron Crate Dimensions (LxWxH) | 83"" x 45"" x 45"" - 2108 x 1143 x 1143 mm |
| Cast Iron Crate Weight | 1470 lbs - 667 kg |
| Sliding Table Crate Dimensions (LxWxH) | 133"" x 18"" x 15"" - 3378 x 457 x 381 mm |
| Sliding Table Crate Weight | 274 lbs - 124 kg |
