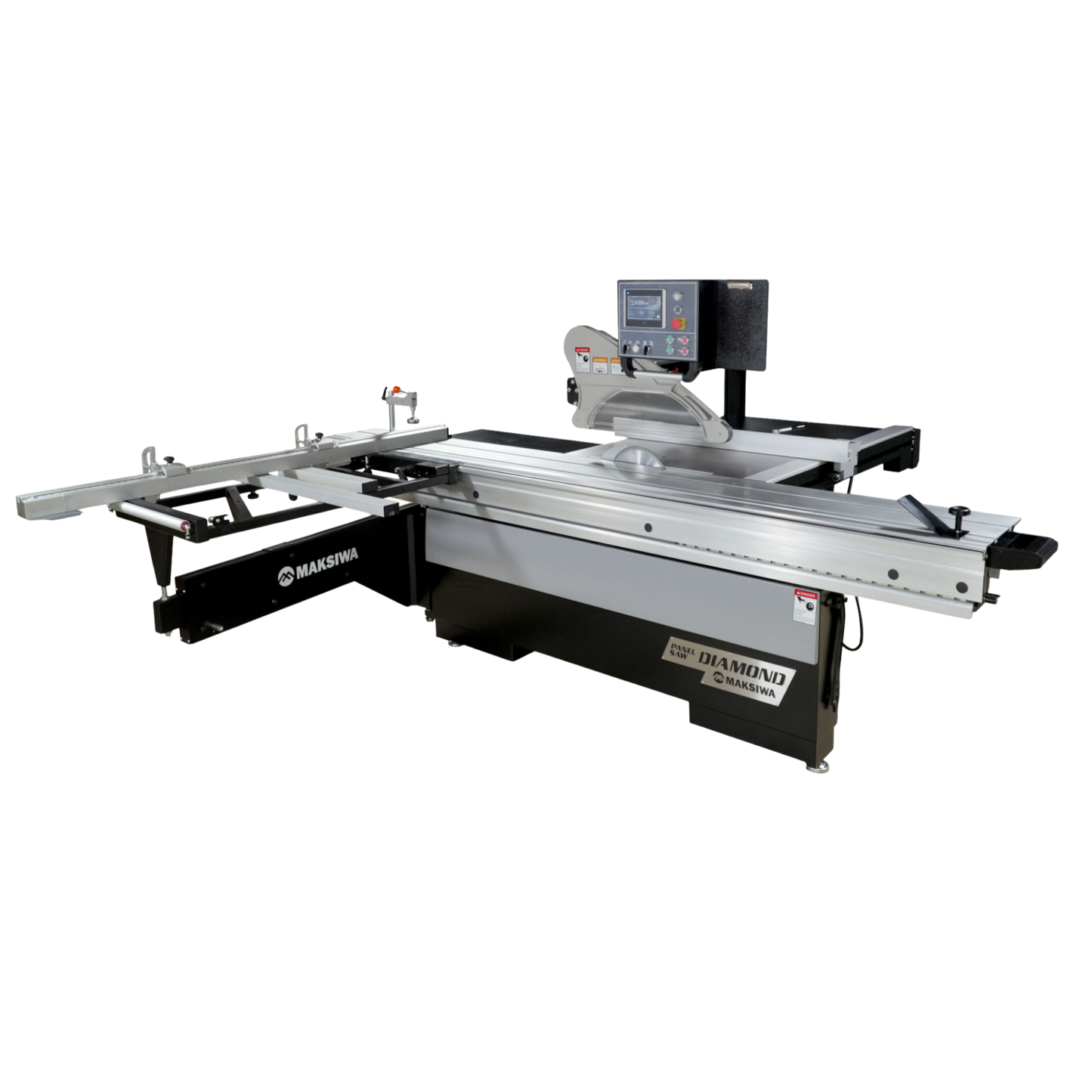

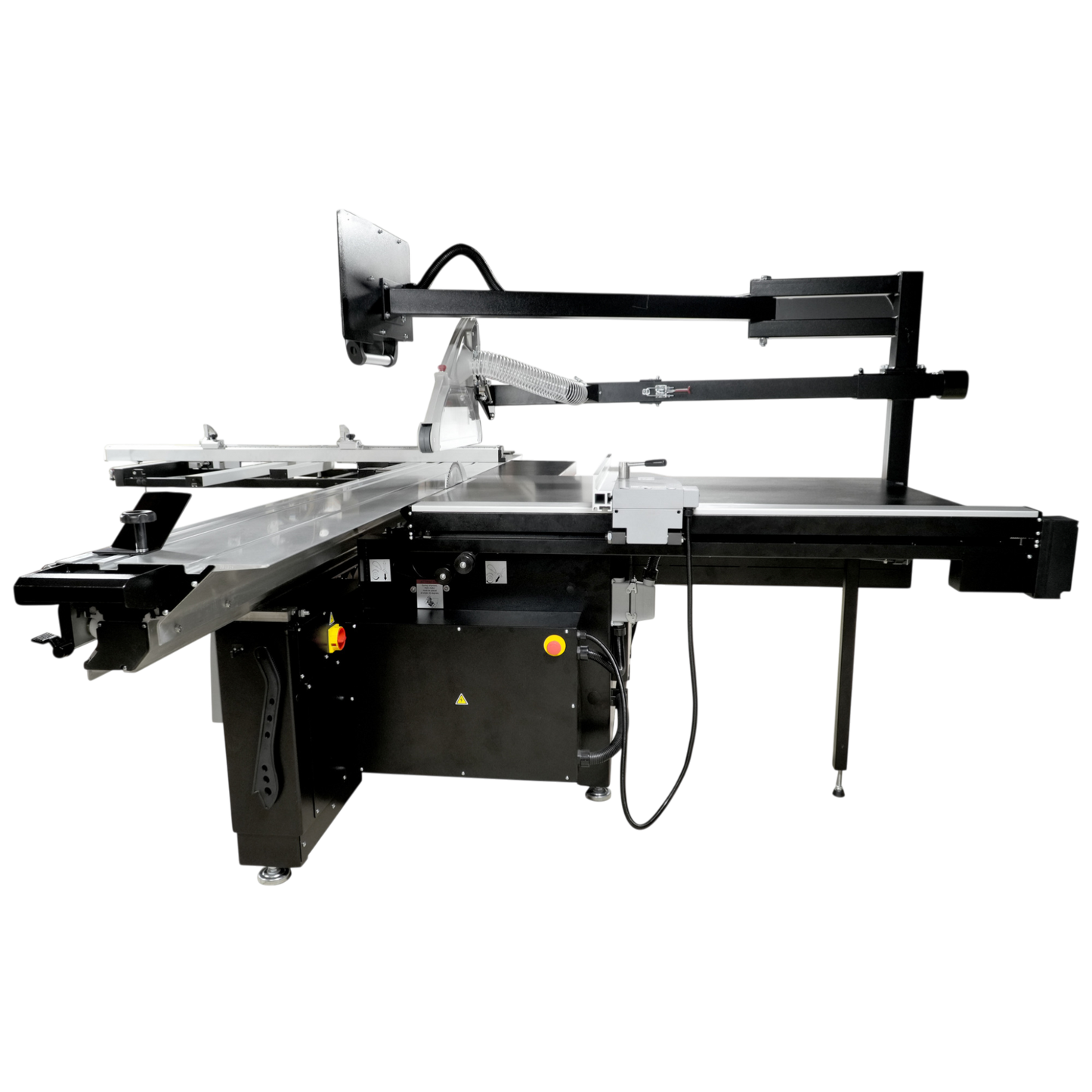

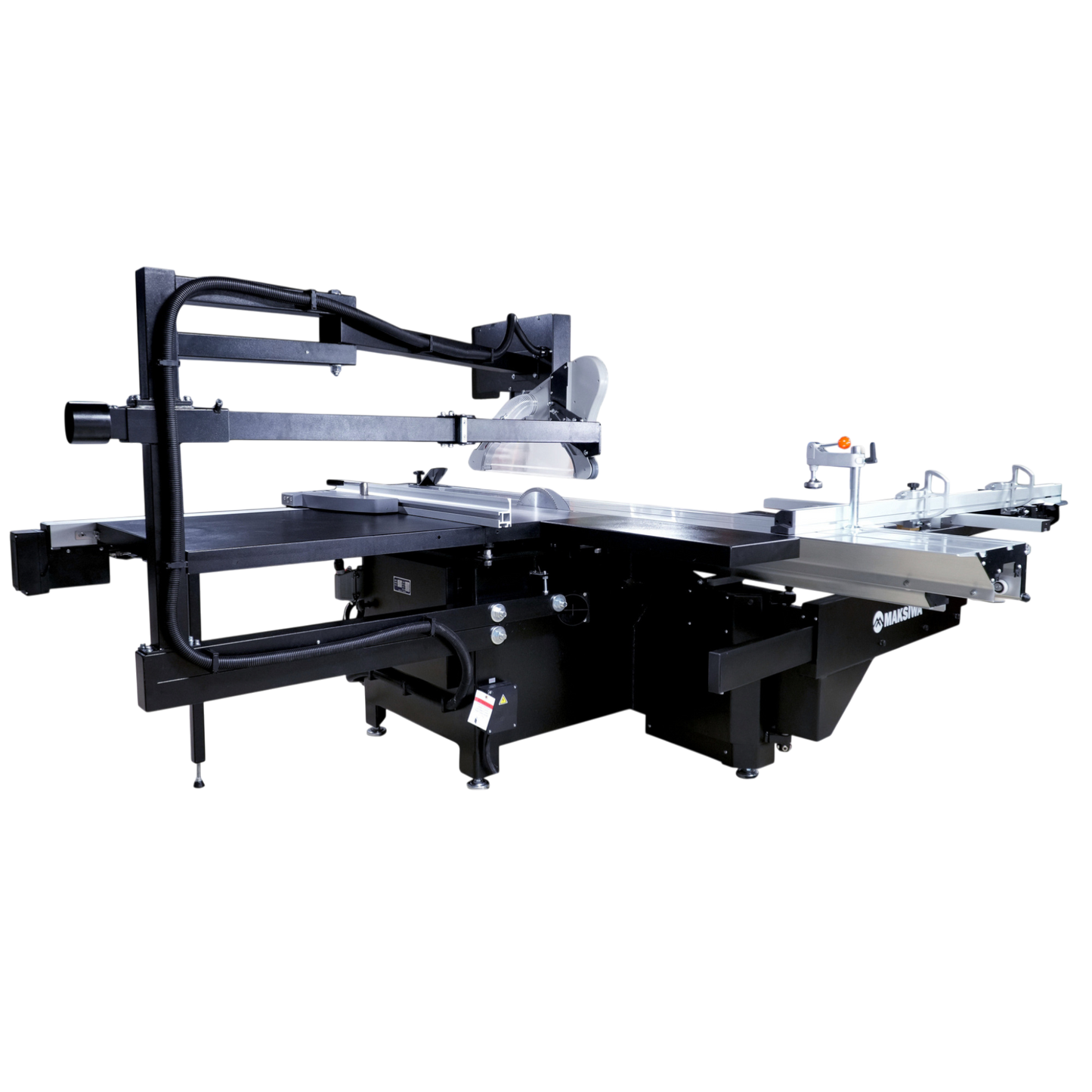

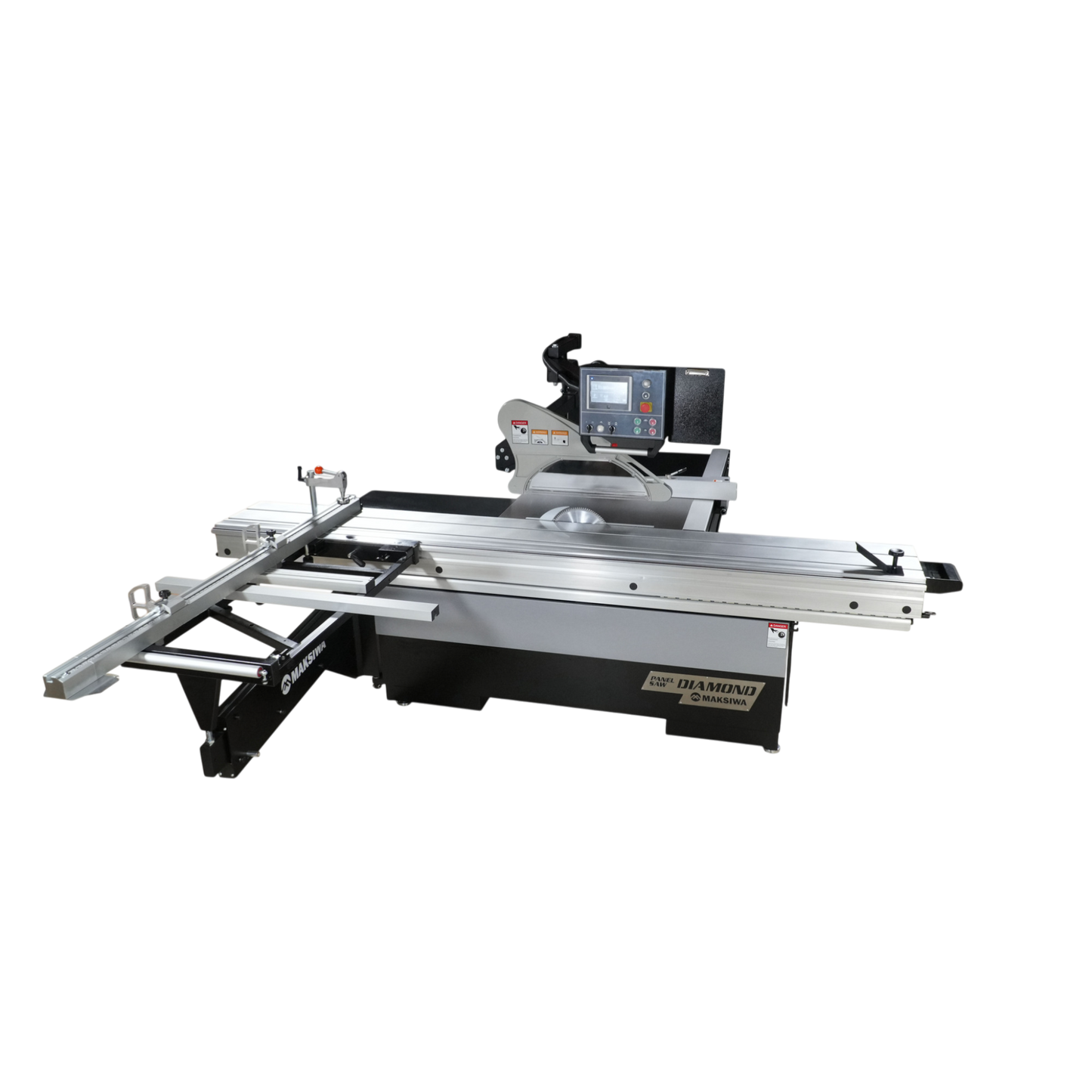

Maksiwa Sliding Panel Saw BMD3200IR Diamond
Maksiwa Sliding Panel Saw BMD3200IR Diamond
Regular price
$20,999.00 USD
Regular price
Sale price
$20,999.00 USD
Quantity
Couldn't load pickup availability
Diamond series — the most powerful 3200mm sliding panel saw in the Maksiwa lineup.
The Maksiwa BMD.3200.IR Diamond delivers 10HP 3-phase power for the most demanding industrial woodworking operations, offering unmatched cutting capacity and precision.
- 3200mm sliding table
- 10HP – 3 Phase 220V motor
- Diamond series top-tier components
- 2-year limited manufacturer warranty
Technical Information +
| Main Motor | 10 HP 3PH 220V 7.3 kw |
| Main Blade Speed | 3000/4000/5000 RPM |
| Max Blade Diameter | 14"" - 355 mm |
| Main Blade Arbor | 1 3/16"" - 30 mm |
| Main Blade Max Cutting Height at 90° | 4"" - 101 mm |
| Main Blade Cutting Height at 45° | 2 3/4"" - 70 mm |
| Scoring Motor | 1 HP / 8000 RPM 0.75 kw |
| Scoring Motor Blade | 4 3/4"" - 120 mm |
| Scoring Blade Arbor | 3/4"" - 20 mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 51"" - 1300 mm |
| Crosscut Capacity | 126"" - 3200 mm |
| Crosscut Fence Capacity Closed/Open | 78""/120"" - 1981/3048 mm |
| Machine Working Dimensions (LxWxH) | 132"" x 137"" x 75"" - 3352 x 3479 x 1905 mm |
| Cast Iron Table Dimension (LxWxH) | 35"" x 21"" x 34"" - 896 x 548 x 864 mm |
| Sliding Table Dimension (LxW) | 126"" x 14"" - 3200 x 358 mm |
| Dust Collection Port (2) | 4"" / 5"" - 100 mm / 130 mm |
| Minimum Dust Collection Requirements | 1000 CFM - 28m/min |
| Electrical Specs | 3 Phase 220V 40 Amps 60 Hz |
| Main Body Crate Dimensions (LxWxH) | 83"" x 45"" x 45"" - 2108 x 1143 x 1143 mm |
| Main Body Crate Weight | 1470 lbs - 667 kg |
| Sliding Table Crate Dimensions (LxWxH) | 133"" x 18"" x 15"" - 3378 x 457 x 381 mm |
| Sliding Table Crate Weight | 274 lbs - 124 kg |
| Rip Fence Crate Dimensions (LxWxH) | 73"" x 11"" x 15"" - 1854 x 280 x 381 mm |
| Rip Fence Crate Weight | 121 lbs - 55 kgs |
